When I talk with my clients about transformers, one question frequently arises: Why is there an air gap in the iron core of a transformer? This seemingly minor detail in transformer design is actually quite significant, and understanding it can profoundly influence the performance of your transformer.
Transformers are essential components across various industries, from industrial control systems to medical devices and energy-efficient appliances. The iron core plays a pivotal role in how these transformers function, particularly in terms of efficiency and reliability.
Understanding the Role of a Transformer’s Iron Core
Transformers are at the heart of electrical systems, allowing energy transfer between circuits. At the core of this process is—literally—the transformer’s iron core, which helps channel magnetic flux generated by the primary coil into the secondary coil. This core optimizes efficiency by guiding magnetic energy effectively and reducing energy losses.
However, iron cores have a limit. When the magnetic flux density becomes too high, the core material can reach what’s known as “saturation.” This saturation can lead to energy losses, overheating, and reduced efficiency, potentially damaging sensitive electronic components or affecting performance. This is where the air gap becomes essential.
What is a Transformer’s Iron Core and How Does it Work?
Understanding the Transformer Core
A transformer core is a crucial component in electrical transformers, designed to facilitate the efficient transfer of electrical energy between two or more circuits through electromagnetic induction. Typically made from laminated sheets of ferrous metal, such as silicon steel, the core serves to channel and enhance the magnetic flux produced by the primary winding.
Structure of the Transformer Core
The transformer core consists of several key parts:
Laminated Sheets: The core is constructed from thin layers of steel that are laminated to reduce eddy current losses. This design minimizes energy waste and improves overall efficiency.
Limbs: These are the vertical sections around which the coils are wound. The limbs provide the magnetic path for the flux.
Yoke: The horizontal section that connects the limbs, forming a closed magnetic circuit. The yoke allows magnetic flux to circulate effectively within the core.
How Does It Work?
The operation of a transformer’s iron core hinges on electromagnetic induction, which involves 4 steps:
- Magnetic Field Generation: When an alternating current (AC) flows through the primary winding (the coil connected to the input voltage), it generates a magnetic field around it. This magnetic field expands and contracts in sync with the AC frequency.
- Magnetic Flux Creation: The iron core enhances this magnetic field by concentrating and channeling the magnetic flux. The core material’s high permeability allows it to carry more magnetic lines of force compared to air, significantly increasing the efficiency of energy transfer.
- Induction in Secondary Winding: As the magnetic field fluctuates, it induces an electromotive force (EMF) in the secondary winding (the coil connected to the output). According to Faraday’s law of electromagnetic induction, this induced EMF is proportional to the rate of change of magnetic flux through the secondary winding.
- Energy Transfer: The induced EMF causes current to flow in the secondary winding, effectively transferring electrical energy from the primary circuit to the secondary circuit without any physical connection between them.
Core Saturation Management: It’s important to manage core saturation—when too much magnetic flux is present, leading to inefficiencies and potential overheating. To prevent saturation, engineers may introduce an air gap into the core design. This air gap increases reluctance in the magnetic path, allowing for better control over flux density and preventing rapid saturation.

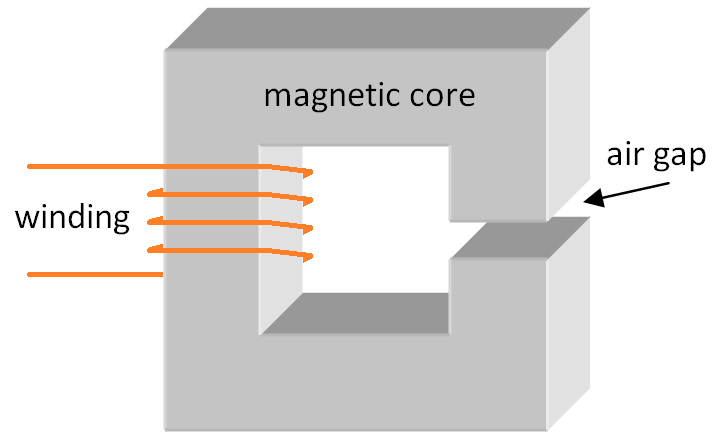

Why Do Transformer’s Iron Core Need an Air Gap?
1.Preventing Core Saturation:
The air gap is critical for avoiding core saturation, especially in transformers that handle variable loads. By increasing reluctance in the magnetic path, the air gap regulates flux density and allows transformers to operate efficiently under demanding conditions.
2.Managing Impedance and Load Variability:
The air gap also influences impedance control within a transformer. This is particularly important for applications with fluctuating load demands, as controlled impedance helps protect components from damage and ensures consistent performance.
3.Improving Transformer Stability:
Adding an air gap enhances control over magnetic flux, resulting in more stable performance. For applications like power supplies, industrial control systems, and medical equipment, stability is paramount. At Unicreed, we customize air gap size and placement based on each industry’s specific needs to ensure optimal efficiency and durability.
Industry Applications and Trends Influencing Air Gap Use
1.Industrial Control and Automation
With the rapid growth of automation and industrial control systems, transformers must handle more complex load variations and maintain stable performance. Air gaps in transformer cores have become an industry standard to manage these challenges. At Unicreed, we see a growing demand for low-frequency transformers designed with customized air gaps to ensure reliability in automation applications.
2.Renewable Energy and Green Technology
Transformers used in renewable energy setups, like solar inverters and wind turbine systems, require air gaps to regulate the intermittent load demands. As global industries push for greener technology, these transformers are increasingly designed with enhanced air gap configurations to maintain stability and prevent power loss. Unicreed’s encapsulated and high-frequency transformers with optimized air gaps are a great fit for these evolving needs.
3.Medical Devices and Sensitive Equipment
In applications like medical devices, where precision is paramount, air gaps are used to fine-tune transformer impedance and prevent any fluctuations that could affect performance. The trend in this sector is toward more compact and efficient transformers with enhanced safety and stability features—qualities we prioritize in our medical-grade transformers.
4.Rising Focus on Miniaturization
Another trend in the transformer industry is miniaturization. As devices become smaller, transformers also need to become more compact without compromising efficiency. By refining air gap design, manufacturers like Unicreed can produce transformers that maintain high performance in smaller packages, which is especially valuable for PCB-mounted transformers used in electronics and portable devices.

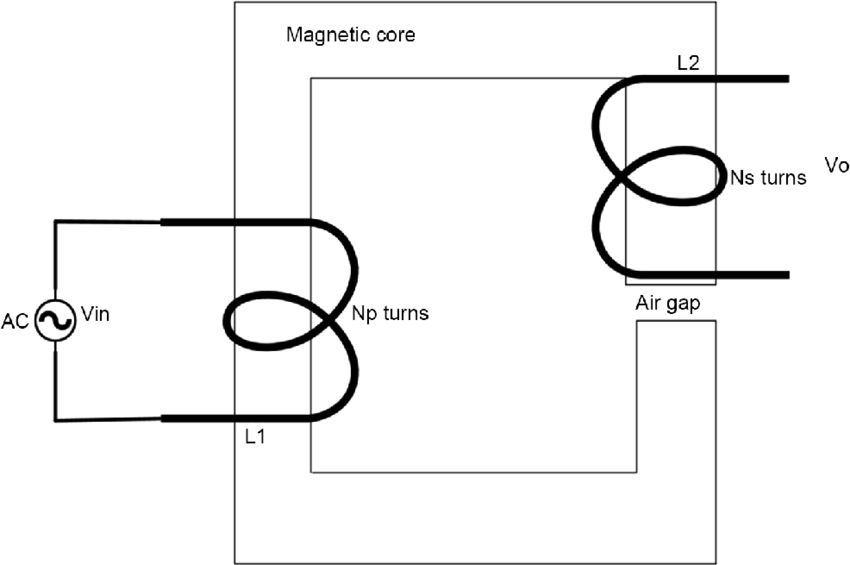

Design Considerations for Air Gaps in Transformers
1.Preventing Magnetic Saturation
One of the primary purposes of introducing an air gap in a transformer’s iron core is to prevent magnetic saturation. When the magnetic flux density within the core reaches a certain level, the core material can no longer effectively carry additional magnetic flux. This saturation leads to energy losses, overheating, and reduced efficiency, which can ultimately damage sensitive electronic components.
By incorporating an air gap, engineers increase the reluctance of the magnetic circuit. This allows transformers to handle higher levels of current without saturating, ensuring optimal operation even under varying load conditions. The air gap essentially acts as a buffer, allowing for greater magnetic flux without compromising performance.
2.Managing Inductance
The presence of an air gap also plays a crucial role in controlling the inductance of a transformer. Inductance is a measure of how effectively a coil can store energy in its magnetic field. The air gap reduces the effective permeability of the core material, which affects the inductance value.
While this reduction might seem counterintuitive, it actually allows for better control over how much energy can be stored and released during operation. This characteristic is particularly important in applications where load demands fluctuate significantly, ensuring that transformers maintain stable performance without risking saturation.
3.Improving Stability and Efficiency
Transformers with air gaps exhibit improved stability in their performance. The air gap helps regulate magnetic flux, resulting in more consistent operation across various applications—be it power supplies, industrial control systems, or medical devices. This stability is crucial for maintaining efficiency and protecting sensitive electronic components from damage due to fluctuating currents.
Moreover, by preventing saturation and effectively managing inductance, transformers can operate at higher voltages without compromising efficiency. This capability is especially beneficial in high-frequency applications where rapid changes in current are common.
4.Enhancing Energy Storage
Another important function of the air gap is its ability to store energy within the magnetic circuit. When energy flows through a transformer with an air gap, it behaves similarly to a reservoir that temporarily holds energy before releasing it back into the system. This storage capacity allows transformers to better manage sudden changes in load demand.
In flyback transformers, for instance, the air gap is critical for storing energy during periods when current is applied and then releasing it when needed. This characteristic not only enhances efficiency but also contributes to the overall functionality of power conversion systems.
5.Addressing Leakage Inductance
While an air gap increases reluctance and helps manage saturation, it also introduces leakage inductance—an undesirable effect where some magnetic flux does not link with both windings of the transformer. This leakage reduces overall efficiency since not all generated magnetic flux contributes to energy transfer.
However, careful design considerations can mitigate these effects. By optimizing the size and placement of the air gap, engineers can strike a balance between preventing saturation and minimizing leakage inductance, ultimately enhancing transformer performance.
Industry Applications and Trends Influencing Air Gap Use in Transformers
The inclusion of an air gap in a transformer’s iron core is not just a design choice; it is a critical factor that influences the performance, efficiency, and reliability of transformers across various applications. Here’s a look at how air gaps are utilized in different industries and the trends shaping their use.
1.Industrial Control and Automation
In the realm of industrial control systems, transformers must handle complex load variations while maintaining stable performance. Air gaps have become standard in transformer designs to manage these challenges effectively. For instance, air-gapped transformers help prevent saturation during transient conditions, allowing for more reliable operation in automation applications. As industries increasingly adopt automation technologies, the demand for low-frequency transformers with customized air gaps is on the rise, ensuring reliability and efficiency.
2.Renewable Energy Systems
The push for renewable energy sources, such as solar and wind power, has led to increased use of transformers designed with air gaps. In renewable energy setups, transformers must manage intermittent load demands effectively. Air gaps allow these transformers to regulate energy storage and release, enhancing stability and preventing power loss. The trend towards greener technology means that manufacturers are focusing on optimizing air gap configurations to meet the evolving needs of renewable energy applications.
3.Medical Devices and Sensitive Equipment
In medical applications where precision is paramount, the design of transformers often incorporates air gaps to fine-tune impedance and prevent fluctuations that could compromise performance. The trend in this sector is moving toward more compact, efficient transformers with enhanced safety features—qualities that are prioritized in medical-grade devices. Air gaps play a crucial role in ensuring these transformers operate reliably under varying conditions while maintaining high levels of accuracy.
4.High-Frequency Applications
High-frequency transformers, such as those used in flyback converters, benefit significantly from the inclusion of air gaps. These gaps help prevent magnetic saturation and allow the transformer to store energy efficiently during operation. As electronic devices become smaller and more powerful, the demand for high-frequency transformers with optimized air gaps is increasing. This trend highlights the need for designs that can handle higher currents while minimizing losses associated with leakage inductance.
5.Miniaturization Trends
The ongoing trend toward miniaturization in electronics has led to a greater focus on transformer design that incorporates air gaps without compromising efficiency. As devices shrink in size, transformers must also become more compact while maintaining high performance levels. By refining air gap design, manufacturers can produce smaller transformers suitable for PCB mounting and portable devices, which is especially valuable as consumer electronics evolve.
Design Considerations for Air Gaps in Transformers
When designing transformers, the inclusion of an air gap in the iron core is a critical factor that influences performance, efficiency, and reliability. Here are the key considerations to keep in mind when incorporating air gaps into transformer designs:
1.Size and Placement of the Air Gap
The size of the air gap and its placement within the core are crucial for achieving optimal performance.
Air Gap Size: A larger air gap increases reluctance, which helps prevent magnetic saturation but can also lead to reduced inductance. Conversely, a smaller air gap can enhance inductance but may risk saturation under high load conditions. Designers must find a balance that meets the specific operational requirements of the transformer.
Placement: The location of the air gap within the core affects how magnetic flux is distributed. Strategically placing the gap can help manage magnetic flux paths and minimize leakage inductance, which is essential for maintaining efficiency.
2.Material Choices
The choice of core material significantly impacts the effectiveness of the air gap:
Laminated Steel: Commonly used in power transformers, laminated silicon steel reduces eddy current losses and enhances overall efficiency. The interaction between the core material and the air gap must be considered to ensure optimal performance.
Ferrite Materials: For high-frequency applications, ferrite cores are often used due to their low losses and high magnetic permeability. The design must consider how the air gap affects the overall inductance and energy storage capabilities in these materials.
3.Inductance Management
Air gaps play a vital role in controlling inductance:
Inductance Reduction: Introducing an air gap decreases the effective permeability of the core, which can reduce inductance. This characteristic is particularly beneficial in applications requiring precise control over inductance values, such as resonant circuits.
Magnetizing Current: The presence of an air gap increases magnetizing current, which must be accounted for in transformer design to prevent overheating and ensure efficient operation.
4.Preventing Core Saturation
One of the primary functions of an air gap is to prevent core saturation:
Saturation Management: The air gap allows transformers to handle higher currents without saturating, which is critical for applications with variable loads or high pulse currents. Properly designed air gaps enable transformers to operate efficiently under demanding conditions.
Hysteresis Losses: Designers must also consider how air gaps affect hysteresis losses within the core. A well-designed air gap can help maintain a favorable B-H loop slope, reducing energy losses during operation.
5.Leakage Inductance Considerations
While an air gap helps manage saturation, it also introduces leakage inductance:
Balancing Act: Designers must strike a balance between preventing saturation and minimizing leakage inductance. An excessive air gap can lead to increased leakage inductance, reducing overall efficiency.
Core Design: Selecting appropriate core shapes (e.g., EE, EF types) can help mitigate leakage inductance while accommodating necessary air gaps.
6.Application-Specific Requirements
Different applications have unique requirements that influence air gap design:
Flyback Transformers: In flyback applications, air gaps are essential for energy storage and managing unidirectional magnetization states. The design must ensure that the transformer operates within its linear regime to avoid inefficiencies or damage.
Medical Devices: For medical-grade transformers where precision is paramount, careful consideration of air gap size and placement ensures reliable performance under varying conditions.
Conclusion:
The air gap in a transformer’s iron core may seem like a minor detail, but it plays a vital role in ensuring reliable, efficient performance. By preventing core saturation, controlling impedance, and enabling stable operation, the air gap makes transformers more adaptable and efficient across a range of applications—from industrial control systems to medical devices and renewable energy solutions.
As transformer technology continues to evolve, trends like miniaturization, green technology, and increased demand for precision in medical applications are pushing us to innovate further. At Unicreed, we’re committed to staying at the forefront of these trends, providing high-quality, customized transformers that meet the changing needs of our customers.
