Battery chargers are everywhere today. From electric vehicles powering our future to medical devices that demand absolute reliability and industrial systems that keep factories running continuously. But have you ever wondered what makes these chargers work so efficiently and safely? At the heart of every high-performance charger is a transformer that manages voltage, isolation and power flow.
Here is the challenge. Not all transformers are created equal. Traditional designs often suffer from bulkiness, energy losses and electromagnetic interference. In demanding applications these issues are not just inconvenient. They can compromise the performance and safety of the entire system.
This is where toroidal transformers step in. Compact, efficient and highly reliable, they are becoming the preferred choice for modern battery charging systems. In this article I will share why toroidal transformers are changing the way we design chargers and what you need to know before choosing one.

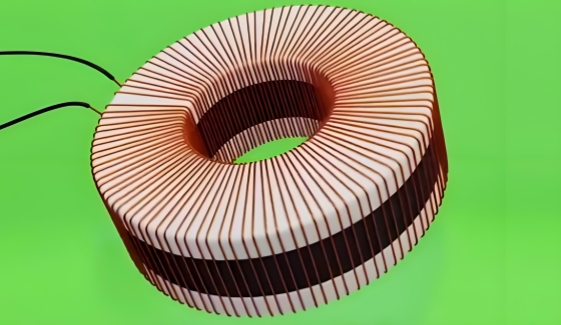

What Is a Toroidal Transformer?
A toroidal transformer is a type of electrical transformer characterized by its doughnut-shaped (ring-shaped) magnetic core, typically made from ferromagnetic materials such as laminated iron, iron powder, or ferrite. The primary and secondary coils are wound around this circular core, allowing the transformer to transfer electrical energy from one circuit to another through electromagnetic induction.
Toroidal transformers are commonly used in applications requiring high efficiency, compact size, and low noise, such as medical equipment, audio systems, renewable energy devices, and battery chargers.
How Do Toroidal Transformers Work in Battery Chargers?
Toroidal transformers work in battery chargers by transferring electrical energy efficiently from the input power source to the battery through electromagnetic induction in a compact and low-loss design. Here’s how they operate in this context:
- When alternating current (AC) flows through the primary winding of the toroidal transformer, it generates a magnetic field concentrated inside the doughnut-shaped core.
- This changing magnetic field induces an electromotive force (EMF) in the secondary winding wrapped around the core, thereby transferring electrical power to the battery charging circuit.
- By adjusting the number of turns in the primary and secondary windings, the transformer steps down or steps up the voltage to the appropriate level needed for safe and efficient battery charging.
- The closed-loop toroidal core minimizes magnetic flux leakage and stray fields, resulting in low electromagnetic interference (EMI), which protects sensitive charging electronics and improves system stability.
- The high efficiency and low resistance of the toroidal design reduce energy losses and heat generation, ensuring better energy efficiency and more reliable charging performance.
- Thanks to their compact and lightweight build, toroidal transformers allow battery chargers to be more portable and space-saving without sacrificing power quality.
Why Use Toroidal Transformers in Battery Chargers?
Toroidal transformers are widely used in battery chargers primarily because they offer high efficiency, low noise, compact size, and minimal electromagnetic interference (EMI),all critical factors for effective and reliable battery charging systems.
6 Keys reasons to use toroidal transformers in battery chargers include:
1.High Efficiency
Their doughnut-shaped core ensures most of the magnetic flux is contained within the core, reducing core and copper losses. This leads to up to 90-95% efficiency, meaning less energy wasted as heat and more power delivered to the battery.
2.Low Electromagnetic Interference
The closed magnetic path reduces stray magnetic fields, minimizing EMI that could interfere with sensitive charging electronics and other nearby equipment.
3.Quiet Operation
Equally distributed windings and secure construction reduce vibrations and mechanical hum, making battery chargers quieter compared to those using traditional transformers.
4.Compact and Lightweight Design
Toroidal transformers use less core material and fewer winding turns, resulting in smaller, lighter chargers that are ideal for portable and space-constrained applications.
5.Improved Voltage Regulation
Their design allows precise voltage conversion, critical for safe and efficient battery charging while protecting battery life.

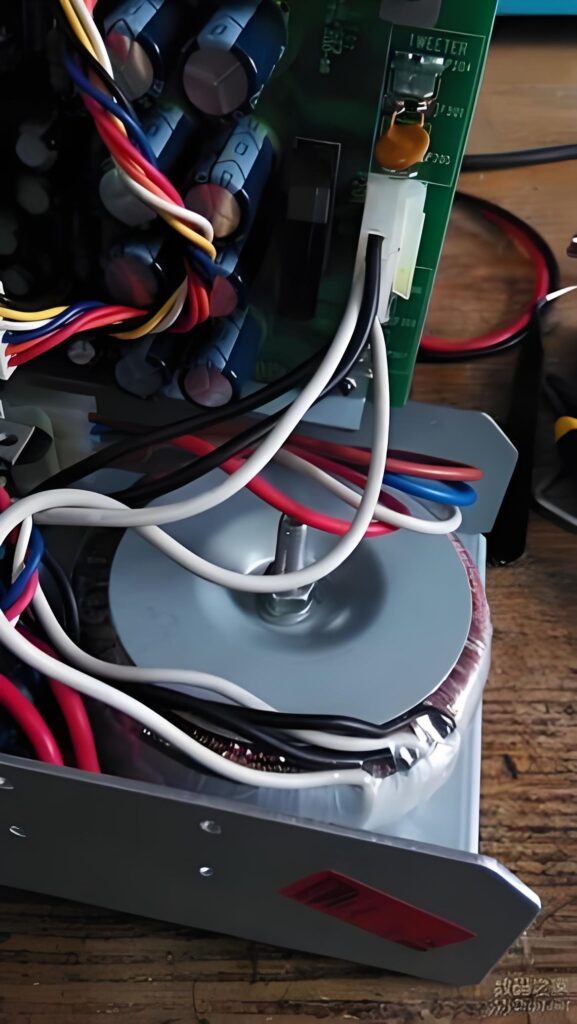

6.Ease of Mounting
Many toroidal transformers feature a simple single-bolt mounting system, which simplifies assembly and reduces manufacturing and maintenance time.
While they generally cost more upfront than traditional transformers, the energy savings, reduced noise, and improved performance often justify their use in battery chargers, especially where efficiency and reliability are priorities.
Advantages of Using Toroidal Transformers in Battery Charging Systems
There are 7 advantages of using toroidal transformers in battery charging systems include:
1.High Efficiency
Toroidal transformers have a closed-loop core that confines magnetic flux tightly, minimizing core and copper losses. This leads to efficiency levels often between 90-95%, which means less wasted energy and reduced heat generation during battery charging.
2.Low Electromagnetic Interference (EMI)
Their design minimizes magnetic flux leakage, significantly reducing stray electromagnetic fields. This protects sensitive electronic components within the charger from interference and signal distortion, enhancing reliability.
3.Compact and Lightweight
Toroidal transformers use less core material and have a smaller, doughnut-shaped design, making them about half the size and weight of traditional transformers. This compactness allows for space-saving, portable, and lightweight charger designs.
4.Quiet Operation
The stable and uniform winding distribution reduces vibration and mechanical hum, resulting in quieter operation compared to conventional transformers, which is beneficial in consumer electronics and sensitive environments.
5.Better Voltage Regulation and Reduced Leakage Inductance
The toroidal core ensures tight magnetic coupling and reduced leakage inductance, delivering stable and precise voltage transformation essential for safe and efficient battery charging.
6.Ease of Mounting
Many toroidal transformers can be mounted securely with a single bolt due to their shape, simplifying assembly and maintenance processes.
7.Reduced Heat Generation
Due to higher efficiency and lower losses, these transformers generate less heat, improving the overall reliability and lifespan of the battery charger system.
These combined features make toroidal transformers an ideal choice for battery charging applications, especially where energy efficiency, noise reduction, compactness, and electromagnetic compatibility are priorities. The main trade-off is a higher initial cost and somewhat more complex manufacturing compared to traditional transformers.
Applications of Toroidal Transformers in Battery Charging
Having understood advantages and Why Use Toroidal Transformers in Battery Chargers of toroidal transformers, it’s important to explore how these advantages translate into real-world applications, especially in the context of battery charging systems. Their compact size, high efficiency, and low electromagnetic interference make toroidal transformers ideal for diverse battery charger designs across multiple industries. Now, let’s delve into the specific applications of toroidal transformers in battery charging.
Below 5 Applications of Toroidal Transformers in Battery Charging

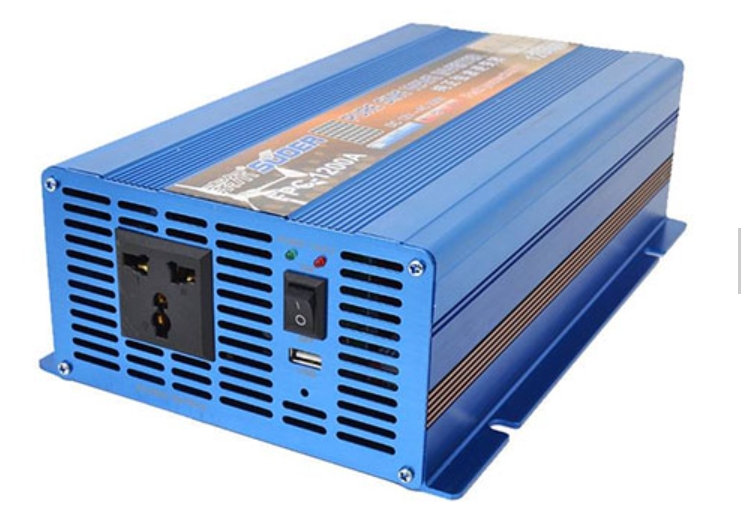

1.Uninterruptible Power Supplies (UPS) and Backup Battery Chargers
Toroidal transformers are integral in UPS systems that require reliable and noise-free charging to maintain backup power for critical equipment. Their efficient voltage transformation ensures quick and stable charging.
2.Renewable Energy Battery Chargers
In solar and wind power systems, toroidal transformers enable efficient DC battery charging by providing compact, lightweight, and efficient AC to DC conversion stages, essential for off-grid energy storage solutions.
3.Electric Vehicle (EV) Charging Stations
As EV chargers demand high power density and precise voltage control, toroidal transformers support reliable, low-noise operation in these advanced battery charging setups.
4.Portable and Consumer Electronics Chargers
Due to their small size and quiet operation, toroidal transformers are used in chargers for laptops, mobile devices, and other battery-powered gadgets, where space and noise constraints are critical.
5.Industrial and Medical Battery Charging Equipment
These transformers offer stable voltage regulation and minimal electromagnetic interference, making them suitable for sensitive environments like hospitals and manufacturing facilities where battery-powered devices require precise and safe charging.
6.Power Conditioning and Control Systems
Toroidal transformers are used in battery chargers integrated into control panels and power conditioning systems, where efficiency and voltage stability directly impact overall performance and battery longevity.
How to Choose the Right Toroidal Transformer for Your Charger
Selecting the appropriate toroidal transformer is a pivotal step in designing or upgrading a battery charger. With the unique advantages of toroidal transformers such as efficiency, low noise, and compactness covered previously, you may wonder how to pinpoint the ideal unit for your specific application. Careful consideration of power requirements, safety standards, and design constraints ensures reliable, efficient charging performance and protects your equipment and batteries. Here’s a practical guide on choosing the right toroidal transformer for your charger.
How to Choose the Right Toroidal Transformer for Your Charger
1.Determine Your Charger’s Power Requirements
First, identify the alternating current (AC) input voltage for your charger, for example, whether it is 110 volts or 220 volts, so the transformer’s primary winding matches this voltage. Next, identify the required output voltage and maximum current needed to charge your battery safely and efficiently. Multiply the output voltage by the maximum output current to calculate the volt-ampere (VA) rating. It is recommended to select a transformer with a 20 to 30 percent higher VA rating than your maximum load to ensure a safety margin.
2.Match Voltage and Winding Configurations
Verify that the primary winding is compatible with the input voltage at your location. Some transformers come with dual primaries allowing selection between 110 volts and 220 volts. On the secondary side, select the voltage level that closely matches your charger’s requirements, such as 12 volts or 24 volts. If your charger needs different output voltages, consider transformers with multiple taps or multiple secondary windings.
3.Consider Physical Size and Mounting
Check the physical dimensions of the transformer to ensure it fits comfortably inside your charger’s enclosure. Although toroidal transformers are compact, make sure to verify both the height and diameter. Most toroidal transformers have a central bolt mounting style, so confirm that your design can accommodate secure mounting using this method.
4.Focus on Efficiency and Thermal Management
Choose models with high efficiency ratings to minimize energy losses and reduce heat generation. A more efficient transformer helps keep the charger cooler and can extend the life of all components. Review the temperature rise specification and make certain that your charger design provides adequate ventilation or heat sinking for thermal management.
5.Noise and Electromagnetic Compatibility
For consumer electronics or sensitive equipment, prioritize toroidal transformers known for quiet operation and minimal mechanical hum. In cases where your charger operates near sensitive circuits, consider transformers with electrostatic shielding or models designed for low leakage to reduce electromagnetic interference.
6.Ensure Safety and Compliance
Confirm that the transformer meets relevant safety and quality certifications such as UL, CE, or RoHS. Some transformers include built-in thermal fuses or other protective features. These add an extra layer of safety for your battery charger design.
7.Consider Special Requirements
If your charger needs to support multiple batteries or voltages, select transformers with several secondary windings. For chargers used in harsh or outdoor environments, look for transformers with protective encapsulation or moisture resistance.
8.Budget and Availability
Balance the often higher initial cost of toroidal transformers against their long-term benefits, such as energy savings, longer lifespan, and greater efficiency. Purchase from reputable suppliers to guarantee product quality and access to technical support.
Summary Table: Checklist for Choosing a Toroidal Transformer
| Factor | What to Check |
| Input Voltage | Matches AC mains supply |
| Output Voltage/Current | Suitable for battery and charger specifications |
| VA Rating | 20 to 30 percent higher than maximum load |
| Physical Size | Fits enclosure and mounting position |
| Efficiency | High, with low core and copper loss |
| Noise/EMI | Quiet, low leakage design if needed |
| Safety/Compliance | Proper certifications, built-in fuses if available |
| Extra Features | Multiple secondaries, suitable for special environments |
| Supplier | Trusted, with good support and warranty |
Can toroidal transformers handle high current demands in fast-charging systems?
When designing fast charging battery systems, a critical factor is whether the transformer can reliably handle the high current demands without compromising efficiency, safety, or longevity. Toroidal transformers are known for their compact, efficient design and high flux density operation, but it is important to understand their current handling capabilities in these demanding applications before selecting one for fast chargers.
Toroidal transformers can indeed handle high current demands in fast charging systems, provided they are properly specified and designed. Their continuous, doughnut-shaped core allows operation at higher flux densities, which is about forty percent higher than conventional laminated transformers. This capability means fewer turns of wire are needed on the windings, reducing copper losses and allowing the use of thicker wire suitable for high currents. In practical terms, toroidal transformers can support very high current outputs; some custom designs reach thousands of volt-amperes and deliver hundreds of amps at low voltages, which is ideal for fast charging scenarios requiring rapid power transfer.
However, achieving high current capacity requires choosing transformers with adequate volt-ampere ratings and proper thermal management to handle heat generated by current flow. The efficiency of a toroidal transformer generally improves with a design that balances copper and iron losses, helping maintain stable operation under heavy load. Additionally, because of their low stray magnetic fields and excellent voltage regulation, they maintain performance integrity even at high currents, reducing waveform distortion and thus protecting sensitive battery electronics.
Are toroidal transformers suitable for portable and compact battery chargers?
Understanding the compatibility of toroidal transformers with various battery charger designs is essential, especially as demand grows for portable and compact charging solutions. Given their unique structural advantages and efficient performance characteristics, it is important to evaluate whether toroidal transformers meet the specific size and portability requirements of modern battery chargers.
Toroidal transformers are highly suitable for portable and compact battery chargers. Their doughnut-shaped core and tightly wound coils allow them to be significantly smaller and lighter than traditional transformers with similar power ratings. This compactness helps manufacturers design chargers that are easier to carry and take up less space, which is crucial for portable devices. Moreover, their high efficiency reduces heat generation, allowing for smaller cooling solutions and contributing to an overall more compact charger design. In addition, the low electromagnetic interference and reduced mechanical noise of toroidal transformers make them ideal for sensitive portable electronics, ensuring reliable and quiet operation.

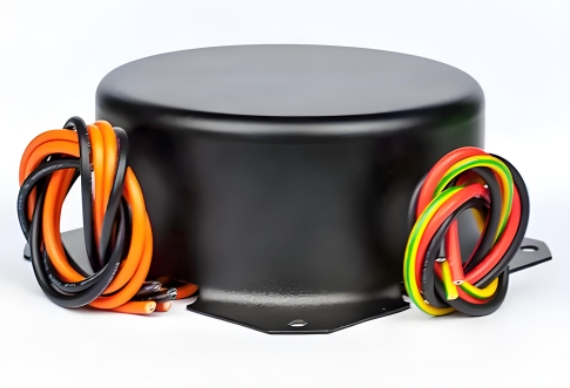

Why Choose Unicreed Toroidal Transformers?
When it comes to toroidal transformers, I know you have options. So why choose Unicreed? It’s simple. Our toroidal transformers are designed to deliver superior performance, efficiency, and reliability for demanding applications like battery chargers, medical devices, and industrial control systems.
At Unicreed, we use premium materials and advanced manufacturing processes to ensure every transformer meets international standards such as CE, ROHS, and UL. Our products offer low electromagnetic interference, high energy efficiency, and excellent thermal management, which means your systems run cooler and last longer.
I also understand that every project is unique. That’s why we offer customization services to match your exact specifications, from voltage and power ratings to mounting styles.
If you want transformers that combine quality, innovation, and responsive support, Unicreed is your ideal partner.
Conclusion
After exploring the role of toroidal transformers in battery chargers, it is clear why they have become the preferred choice for modern applications. Their compact design saves valuable space, their high efficiency reduces energy losses, and their low electromagnetic interference ensures reliable performance even in sensitive systems. Whether it is for electric vehicles, industrial equipment, or medical devices, toroidal transformers deliver the performance and reliability that advanced battery chargers require.
If you are looking for high-quality toroidal transformers for your battery charging system, I would be happy to help. At Unicreed, we specialize in designing and manufacturing transformers that meet the highest standards of efficiency and safety. Contact us today to discuss your project and discover how we can support your success.
