Have you ever struggled with unwanted hum or background noise in your audio amplifier? That kind of interference can ruin the clarity of your sound and affect the overall performance of your system. As someone focused on building reliable and high-quality audio solutions, I understand how important it is to maintain a clean audio signal from start to finish.
One key factor that often gets overlooked is the transformer used in the power supply. Traditional transformers can introduce electromagnetic noise that interferes with sensitive audio circuits. This noise becomes especially noticeable in precision audio systems where every detail matters.
That is where toroidal transformers come in. Their unique shape and construction help minimize magnetic leakage and reduce system noise significantly. More and more audio system designers are turning to toroidal options for this reason. In this post, I will explain what makes them so effective in keeping your audio signal clean.
What is a Toroidal Transformer?

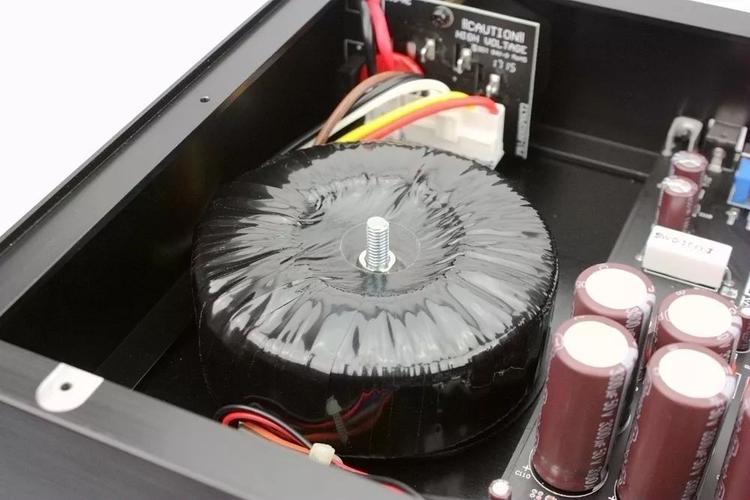

A toroidal transformer is a type of electrical transformer that uses a ring-shaped (doughnut-like) magnetic core made from materials like silicon steel or ferrite. The name “toroidal” comes from the Latin word torus, meaning a circular or doughnut shape.
These transformers were developed in the mid-20th century as engineers searched for more efficient and compact alternatives to traditional laminated core transformers. Their unique design was found to offer numerous benefits, especially in applications requiring low electromagnetic interference (EMI) and high efficiency,such as audio amplifiers, medical devices, and precision instruments.
Structural Features
The key to a toroidal transformer’s performance lies in its symmetrical ring-shaped core, around which the primary and secondary windings are wrapped continuously. Unlike traditional transformers that use stacked rectangular cores, toroidal cores allow the magnetic field to flow in a closed-loop with minimal leakage.
Key structural features include
- Doughnut-shaped core: Ensures uniform magnetic flux distribution.
- Continuous windings: Wrapped evenly around the core for balanced performance.
- Compact and lightweight: Their shape allows for tighter winding and a smaller footprint.
- Low stray magnetic field: Significantly reduces electromagnetic interference.
Comparison with Traditional EI (Laminated Core) Transformers
| Feature | Toroidal Transformer | EI Transformer |
| Core Shape | Circular (toroid) | Rectangular (laminated plates) |
| Magnetic Leakage | Very Low | Higher |
| Efficiency | High (typically 90-95%) | Moderate |
| Size & Weight | Smaller and lighter | Larger and heavier |
| EMI | Minimal | Can generate more EMI |
| Mounting | May require custom mounts | Easier to mount with standard brackets |
| Cost | Generally higher | Lower upfront cost |
Due to their compact design, low noise, and excellent electromagnetic interference suppression, toroidal transformers are widely favored in audio amplifiers, especially by audiophiles and high-end audio equipment manufacturers.
Understanding System Noise in Audio Amplifiers
High-performance audio amplifiers are designed to deliver clean, accurate sound — but system noise can severely compromise this goal. Whether you’re an audiophile, a sound engineer, or just someone who appreciates clear audio, understanding the sources and effects of noise is crucial to achieving the best possible sound quality.
Sources of Noise
1.Electromagnetic Interference (EMI)
One of the most common culprits, EMI is caused by unwanted electromagnetic energy radiating from external sources such as:
- Power supplies
- Mobile phones
- Wi-Fi routers
- Fluorescent lighting
- Switching regulators
These signals can couple into the amplifier’s circuitry and introduce audible hums, buzzes, or high-frequency hiss, especially in sensitive analog signal paths.
2.Mechanical Vibrations and Magnetostriction
Inside transformers especially traditional EI types mechanical vibrations and a phenomenon called magnetostriction can also generate noise. Magnetostriction is the tendency of ferromagnetic materials to expand and contract slightly when magnetized. This leads to:
- Audible humming from the transformer
- Physical vibration that can transmit through the chassis and into other components
- Potential microphonic effects in sensitive environments
These physical noises are not just annoying they often translate into electrical noise that can be picked up by the amplifier’s circuitry.
Unique Features of Toroidal Transformers
Compact Design:
- Toroidal core shape minimizes stray magnetic fields and reduces EMI.
- Smaller size and weight compared to traditional EI transformers.
High Efficiency:
- Continuous grain-oriented silicon steel core ensures better flux density and lower energy loss.
Low Mechanical Hum:
- Absence of an air gap reduces magnetostriction, the primary cause of mechanical noise.
Impact on Audio Quality
Even low levels of system noise can degrade the clarity, warmth, and detail of audio reproduction. Here’s how:
- Distorted signal paths: Noise interferes with clean signal processing, reducing fidelity.
- Loss of dynamic range: Background noise raises the noise floor, masking low-level details.
- Listening fatigue: Persistent hum or hiss can make long listening sessions uncomfortable.
- Perceived quality: In high-end systems, even minor noise can be perceived as a flaw in craftsmanship or performance.
Reducing system noise is not just about eliminating distractions , it’s about preserving the integrity of the sound. This is why choosing the right transformer, such as a toroidal transformer, is so critical in amplifier design. They directly address the root causes of system noise, delivering a cleaner, more immersive listening experience.
What are the Mechanisms for Noise Reduction in Audio Amplifiers？
Audio amplifiers are designed to amplify the audio signal without amplifying unwanted noise. Achieving this balance requires a combination of thoughtful circuit design, shielding, grounding, and, importantly, the use of high-quality components like toroidal transformers. Here are the key mechanisms used to minimize noise in audio amplifiers:
1.Electromagnetic Shielding
What it does: Blocks external electromagnetic fields from entering sensitive parts of the circuit.
How it’s done: Metal enclosures, shielded cables, and transformer housings (often with copper or steel shielding).
Effectiveness: Critical in environments with lots of electrical interference.
2.Grounding and Star Grounding Techniques
What it does: Prevents ground loops and potential differences that introduce hum.
How it’s done: All ground points are connected back to a single central “star” point.
Effectiveness: Very effective for eliminating low-frequency hum (e.g., 50/60Hz).
3.Power Supply Filtering
What it does: Filters out AC ripple and high-frequency noise from the power supply.
How it’s done: Uses capacitors, inductors, and voltage regulators in the power section.
Effectiveness: Essential for clean DC power delivery to amplifier circuits.
4.Use of Low-Noise Components
What it does: Reduces inherent electronic noise in signal paths.
How it’s done: High-grade op-amps, resistors, and capacitors with low thermal and electrical noise ratings.
Effectiveness: Makes a noticeable difference in high-end audio performance.
5.Proper PCB Layout and Separation
What it does: Prevents crosstalk and signal interference.
How it’s done: Physical separation of power, digital, and analog signal paths on the PCB.
Effectiveness: Critical in modern compact amplifier designs.
6.Use of Toroidal Transformers
What it does: Minimizes magnetic leakage and mechanical hum.
How it’s done: Circular core geometry keeps magnetic fields contained and reduces EMI.
Effectiveness: One of the most effective passive ways to reduce noise at the source — especially in the power supply section.
The cleanest audio systems use a combination of noise-reduction techniques, both active and passive. Among them, the choice of transformer,particularly toroidal transformers plays a foundational role in keeping system noise to a minimum and preserving audio purity.
What are Torodial Transformer Benefits design in Audio Performance?
When it comes to high-fidelity sound, every component in an audio amplifier matters and the transformer is no exception. Toroidal transformers are especially prized in audio equipment for their performance-enhancing properties. Here’s why they’re considered superior in audio applications:
1.Ultra-Low Electromagnetic Interference (EMI)
Thanks to their circular core design, toroidal transformers have a closed magnetic field, which significantly reduces stray magnetic flux. This minimizes the risk of EMI affecting nearby sensitive audio circuitry — keeping your signal path clean and hum-free.
Result: Less hum, buzz, and interference — especially noticeable in quiet musical passages.
2.Reduced Mechanical Noise
Toroidal transformers naturally vibrate less than conventional laminated-core (EI) transformers. Their windings are tightly wound around the core, and the symmetrical shape helps reduce magnetostriction-related vibrations.
Result: Silent operation, ideal for both studio monitors and audiophile listening environments.
3.High Efficiency & Power Density
Toroidal transformers typically operate at 90–95% efficiency, meaning less energy is lost as heat. They’re also more compact for the same power output, which is crucial in modern, space-conscious amplifier designs.
Result: Better thermal performance and more room inside the chassis for other components or airflow.
4.Excellent Voltage Regulation
Thanks to the shorter magnetic path and high permeability of the toroidal core, these transformers offer superior voltage stability under load. This provides cleaner power to the amplifier’s circuitry.
Result: Stable audio performance, even under dynamic signal conditions (bass peaks, complex music, etc.)
5.Lower Audible Hum
Toroidal transformers don’t just reduce electronic noise — they also produce less audible hum. Their low stray field means they don’t interfere with the chassis or enclosure, and mechanical damping further limits noise.
Result: A quieter overall listening experience, especially in low-volume or near-field setups.
6.Cleaner Ground Reference
The reduced EMI and better isolation of toroidal designs contribute to a cleaner electrical ground, which is vital in preventing ground loop noise and hum — common issues in audio setups.
Result: Reduced risk of unwanted buzz or hiss from ground issues.
7.Ideal for Custom Audio Designs
Toroidal transformers can be custom-wound to match specific voltage and current requirements. This allows audio designers to fine-tune performance and efficiency for different amplifier classes (A, AB, D, etc.).
Result: Tailored power delivery for optimal audio system performance.
Conclusion:
Toroidal transformers are not just a component they’re a key contributor to high-end audio quality. By reducing noise, improving efficiency, and enhancing stability, they help amplifiers deliver the clean, detailed, and immersive sound that serious listeners demand.
How to Choosing a Toroidal Transformer in Your Audio Amplifiers？
While toroidal transformers offer excellent performance in audio systems, selecting the right one requires careful consideration of several factors. The right choice can make a significant difference in sound clarity, system stability, and overall reliability.
1.Size and Power Rating
A toroidal transformer must be properly sized to meet the voltage and current requirements of your amplifier. Using a transformer that is too small may lead to overheating or voltage drops. Using one that is too large may increase cost and take up unnecessary space.
What to consider:
- Match the power rating to the maximum load of your amplifier
- Allow room for peak current during dynamic audio playback
- Make sure the transformer fits inside the amplifier enclosure with enough room for ventilation
- Why it matters: Proper sizing ensures consistent performance and prevents power-related distortions.
2.Quality of Core Materials
The material used for the core directly affects the transformer’s efficiency, noise level, and heat generation.
Common materials include:
- Silicon steel which offers a good balance of performance and affordability
- Amorphous metal which provides higher efficiency and lower electromagnetic noise
- Nanocrystalline alloys for premium applications requiring extremely low core losses
- Why it matters: High-quality core materials contribute to better sound purity and reduced interference.
3.Proper Mounting and Shielding
Even high-grade toroidal transformers can cause noise if not installed correctly. Vibration and magnetic fields can transfer into nearby sensitive circuits.
Tips for optimal performance:
- Use rubber or silicone washers to minimize mechanical vibration
- Position the transformer away from preamp sections or signal paths
- Add magnetic shielding when needed to block stray fields
- Why it matters: Proper installation helps maintain clean audio with minimal background hum.
4.Custom or Standard Transformer Selection
Depending on your application, you may choose between custom-designed transformers or off-the-shelf models.
Standard transformers:
- Readily available and more cost-effective for general use
- Suitable for typical amplifier voltages and loads
Custom transformers:
- Designed specifically to meet unique voltage, current, size, or shielding requirements
- Ideal for boutique audio products, OEM production, or specialized installations
- Why it matters: Choosing the right type ensures your amplifier receives the exact power characteristics it needs for optimal sound performance.
Case Examples or Use in Industry

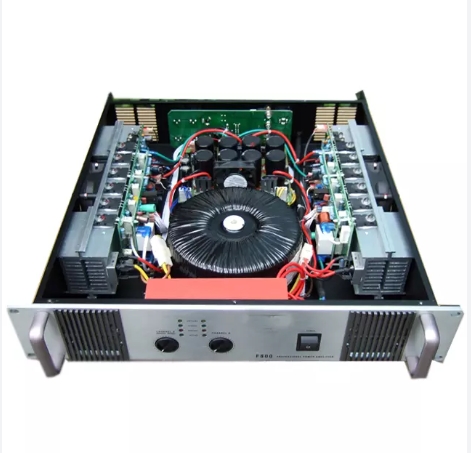

Toroidal transformers have become a trusted component in high-end audio amplifier design, valued for their ability to minimize system noise while maintaining high efficiency and compact size. Their symmetrical construction significantly reduces magnetic flux leakage, which helps prevent unwanted interference with nearby sensitive audio circuitry. This is crucial in both consumer and professional applications where clarity, low distortion, and silent operation are key performance metrics.
Leading audio brands across the globe have incorporated toroidal transformer technology into their amplifier designs to ensure clean power delivery and ultra-low noise floors. These transformers not only support stable voltage regulation but also contribute to maintaining tonal accuracy and dynamic range, two of the most sought-after attributes in audiophile-grade sound systems.
Examples of Reputable Audio Brands
1.NAD Electronics
Usage: NAD Electronics integrates toroidal transformers into many of its amplifiers, such as the NAD C 368. These transformers help achieve low noise floors and high dynamic range, ensuring precise sound reproduction.
Impact: The use of toroidal technology contributes to NAD’s reputation for minimalist yet high-performance designs, making their amplifiers a favorite among audiophiles.
2.Cambridge Audio
Models: Cambridge Audio employs toroidal transformers in its CXA81 and Edge series amplifiers.
Benefits:
- Stable power supply ensures consistent audio performance.
- Precise sound reproduction minimizes distortion, allowing users to enjoy clear and detailed soundscapes.
- Customer Feedback: Cambridge Audio products are often praised for their ability to deliver hi-fi quality at competitive prices.
3.Marantz
Application: Marantz incorporates toroidal transformers in its reference series amplifiers to provide consistent, noise-free power delivery.
Signature Sound: The warm and detailed sound that Marantz is known for is supported by the clean power provided by toroidal transformers.
4.Rotel
Innovation: Rotel designs and manufactures its own toroidal transformers in-house, ensuring optimal performance tailored to their amplifiers like the RB-1590.
Advantages:
- Large toroidal units provide strong, stable current for clean signal paths.
- Enhanced dynamics and signal purity make Rotel amplifiers a popular choice for audiophiles seeking high-quality sound.
5.Yamaha (HiFi Series)
Integration: Select models from Yamaha’s A-S and M series amplifiers feature toroidal transformers to enhance signal purity and dynamic response.
Performance:
Improved clarity and reduced noise make these systems ideal for audiophile-grade setups.
Real-World End-User Feedback
1.Noise Reduction:
“Dead silent operation even at high gain. No hum whatsoever. I’m sure the toroidal transformer is a big reason for that.”
2.Improved Clarity:
“This amp has incredible clarity and dynamic range. The power feels clean and effortless, probably thanks to the toroidal design.”
3.Enhanced Listening Experience:
“I replaced my old amp with a toroidal-based unit and instantly noticed a reduction in background hiss. Everything sounds more natural.”
These testimonials highlight the transformative impact of toroidal transformers on audio quality, emphasizing their role in delivering smoother, more immersive listening experiences.
Conclusion：
From my own experience working with audio systems, I can confidently say that toroidal transformers play a key role in reducing system noise and elevating overall sound quality. Their ability to confine magnetic fields, suppress electromagnetic interference, and operate with near-silent performance makes them a smart choice for any serious audio application.
If you are passionate about high-fidelity sound like I am, then investing in a high-quality transformer is absolutely worth it. Whether you are designing a new amplifier or upgrading an existing one, a toroidal transformer can help deliver a clearer, more stable, and noise-free listening experience.
If you are considering a custom toroidal transformer for your amplifier project or want expert support on integration, I would be glad to help. At Unicreed, we specialize in designing and supplying toroidal transformers tailored for audio applications, and we are always happy to work with engineers, designers, and audio enthusiasts alike.
Feel free to reach out to me directly:
