Toroidal transformers are essential in today’s electronics. From powering industrial systems to ensuring stable energy flow in medical and renewable energy devices, they are the quiet workhorses behind reliable performance. At the heart of these transformers is the primary winding, which plays a critical role in stepping down or isolating voltage.
But here’s the problem. When the primary winding breaks, the entire transformer fails to function, causing power loss, system downtime, and even potential damage to connected equipment. For businesses that rely on uninterrupted operation, this can lead to costly delays and frustration.
The good news is that with the right approach, diagnosing and repairing a broken primary winding can be faster and more cost-effective than replacing the entire transformer. In this post, I will show you how to identify the signs of failure and outline safe, effective repair steps to get your system running again.
Understanding the Toroidal Transformer Structure
A toroidal transformer consists of a core shaped like a torus a doughnut or ring-shaped loop made from ferromagnetic materials such as laminated iron, ferrite, or magnetic alloys. This core forms a continuous magnetic path without air gaps, which allows it to efficiently concentrate and transfer magnetic flux generated by the windings around it.
The transformer has primary and secondary windings tightly and evenly wound around the toroidal core, with insulation material separating them to prevent electrical contact or short circuits. When alternating current passes through the primary winding, it creates a changing magnetic field within the core that induces a voltage in the secondary winding through electromagnetic induction.
The number of turns in the primary and secondary coils determines the voltage transformation ratio. More turns on the secondary than the primary mean the transformer steps up voltage; fewer turns mean it steps down voltage.
What Is the Primary Winding in a Toroidal Transformer?
The primary winding in a toroidal transformer is the coil of wire that is connected to the power source and receives the input voltage. When alternating current (AC) flows through this primary winding, it creates a changing magnetic field within the toroidal (ring-shaped) magnetic core. This magnetic field induces a voltage in the secondary winding through electromagnetic induction, enabling the transfer of electrical energy from the input (primary) side to the output (secondary) side without a direct electrical connection.
4 Key points about the primary winding in a toroidal transformer include:
- It is responsible for producing the magnetic flux that passes through the toroidal core, which forms a closed magnetic circuit that links the primary winding with the secondary winding.
- The number of turns (coils) in the primary winding relative to the secondary winding determines how the voltage is stepped up or stepped down, based on the turns ratio.
- The primary winding is electrically isolated from the secondary to provide safety and prevent direct current flow between the circuits, while still allowing energy transfer through the magnetic field.
- In toroidal transformers, the continuous core shape and strategic winding arrangement help maximize coupling efficiency, reduce energy loss through magnetic leakage, and minimize electromagnetic interference.
Symptoms of a Broken or Faulty Primary Winding
When troubleshooting issues with toroidal transformers, it is crucial to identify whether problems stem from the primary winding, as this component is vital for initiating the magnetic flux essential to the transformer’s operation. Detecting the symptoms of a broken or faulty primary winding early can help prevent further damage to your charging system and guide appropriate repair or replacement.
If you notice any of the following symptoms, it may indicate a broken or faulty primary winding:
1.No Output Voltage
The most immediate sign is the complete absence of voltage at the transformer’s output. Since the primary winding is responsible for generating the magnetic field that induces voltage in the secondary winding, a break or fault interrupts this process and results in no output.
2.Open Circuit on Continuity Test
Using a multimeter, measure the resistance across the primary winding terminals. An open or very high resistance value indicates that the winding is broken internally and current cannot flow through the coil.
3.Blown Input Fuses or Circuit Breakers
If the transformer repeatedly blows the input fuse or trips the circuit breaker, this may be due to a short circuit or significant fault within the primary winding, leading to excessive current draw.
4.Visible Physical Damage
Look for visual signs such as burnt insulation, darkened windings, melted or frayed wires, or apparent breaks at the connection points. Physical damage often accompanies thermal or electrical failure of the winding.
5.Overheating and Unusual Odors
A faulty or shorted primary winding may cause the transformer to become abnormally hot or emit a burnt smell, reflecting overheating due to electrical malfunction.
6.Unusual Sounds
Listen for unexpected buzzing, humming, or crackling noises—which may indicate arcing or insulation breakdown within the primary winding.
7.Significantly Lower Output Voltage
In rare cases of partial failure, the transformer may still provide some output, but the voltage will be far below specification due to incomplete flux linkage.
Identifying these symptoms allows you to accurately diagnose a broken or faulty primary winding in toroidal transformers, helping you decide whether to proceed with repairs or replacement.
Safety Precautions Before Starting Diagnosis or RepairPrimary Winding in Toroidal Transformers
Before you begin diagnosing or repairing the primary winding of a toroidal transformer, it is crucial to take proper safety precautions to protect yourself and the equipment. Transformers handle high voltages and currents, and mishandling can lead to electric shock, equipment damage, or fire hazards. Understanding and applying key safety measures ensures that your diagnostic and repair work proceeds smoothly and safely.
10 steps Safety Precautions Before Starting Diagnosis or Repair of Primary Winding in Toroidal Transformers
1.Disconnect Power Completely
Always ensure the transformer is completely unplugged from any mains or power source. Confirm that capacitors in the circuit are discharged to avoid unexpected voltage shocks.
2.Avoid Touching Primary Terminals
The primary winding connects directly to the mains voltage, so never touch the primary terminals or wires even if the transformer appears unpowered.
3.Ground Exposed Metal Parts
Any uncovered metallic parts or enclosure should be properly grounded to prevent accidental shocks from leakage currents.
4.Use Proper Measuring Instruments
When testing windings, use a battery-powered or isolated multimeter with appropriate voltage and resistance ranges to avoid short circuits or damage.
5.Wear Appropriate Personal Protective Equipment (PPE)
Insulating gloves, safety glasses, and insulated tools reduce the risk of injury during inspection and repairs.
6.Ensure a Safe Working Environment
Work in a dry, well-lit, and uncluttered area. Avoid damp conditions, which increase the risk of electric shock.
7.Check for Mechanical Stability
Make sure the transformer and any supporting structures are secure so they won’t fall or move unexpectedly during repair.
8.Follow Manufacturer Instructions
If available, consult datasheets or manuals for specific safety recommendations and wiring diagrams to avoid incorrect handling.
9.Use Correct Tools and Techniques
When unwinding or rewinding coils, use tools designed for the task to prevent damage to insulation or conductor wire.
10.Fuse and Circuit Protection
Verify that overcurrent protection devices (fuses, breakers) on the transformer’s primary circuit are proper and intact, and never modify or bypass them.
How to Step-by-Step Guide to Diagnosing the Primary Winding
When dealing with toroidal transformers, a key aspect of maintenance and troubleshooting is reliably diagnosing issues in the primary winding. Since the primary winding is responsible for initiating current flow and generating the magnetic flux needed for operation, any problem here can render the entire transformer ineffective. Following a systematic approach to diagnosis not only prevents further damage but also ensures safety and precision throughout the process.
Step-by-Step Guide to Diagnosing the Primary Winding
1.Ensure Complete Isolation from Power
- Unplug the transformer from all power sources.
- Discharge any capacitors in the surrounding circuitry to eliminate stored voltage.
2.Visual Inspection
a.Examine the transformer for visible signs of damage:
- Burnt or darkened insulation
- Melted or frayed wires
- Broken or disconnected leads
b.Check for unusual odors or deformation indicating overheating or electrical faults.
3.Measure Continuity with a Multimeter
- Set the multimeter to the continuity or resistance (ohms) setting.
- Connect the multimeter probes to the primary winding terminals.
- A healthy winding typically shows low resistance (a few ohms for low-power transformers; check specific datasheets for values).
- Infinite or very high resistance indicates an open circuit—sign of a broken winding.
- Very low or zero resistance may signal a shorted winding.
4.Cross-Check with Reference Values
- Compare your measured resistance with the manufacturer’s specifications or typical values for similar transformers.
- Significant deviations confirm a faulty winding.
5.Inspect for Short Circuits or Ground Faults
- Test between each primary terminal and the core or transformer body.
- Any measurable resistance here points to insulation breakdown or a winding short to ground.
6.Inspect Insulation Integrity
- Look for physical cracks, peeling, or breaks in the enamel coating or tape insulation.
- If available, use an insulation resistance tester (megohmmeter) for detailed checks.
7.Identify the Exact Fault Location (if needed)
If a break is suspected but not visible, gently probe or separate winding layers as needed—taking care not to cause further damage or short circuits.
8.Document Results
Record resistance readings, physical findings, and visual observations for repair reference or potential replacement.
Following these systematic steps enables you to accurately assess the primary winding of a toroidal transformer and decide whether repair or replacement is necessary. This ensures safe operation and prevents potential failures down the line.
Can You Repair a Broken Primary Winding?
Yes, you can repair a broken primary winding in a toroidal transformer, but the feasibility depends on the extent of the damage and your experience with transformer winding. Minor breaks or damaged wire segments may be repaired by carefully stripping and soldering the broken ends, using appropriate magnet wire and insulation to ensure proper electrical and mechanical integrity.
In cases where the primary winding is extensively damaged, the preferred approach is to rewind the primary coil completely. This involves removing the old winding and winding the correct number of turns of magnet wire, matching the original wire gauge and specifications. The process requires careful measurement, precision, and the right tools to maintain uniform tension, correct turn count, and insulation quality. Many hobbyists and technicians document methods such as winding test segments to measure voltage per turn and using that to calculate total turns needed for the input voltage (typically mains voltage such as 220V or 110V at 50/60 Hz).
However, rewinding toroidal transformers can be tedious and time-consuming, especially for those less experienced. Twisted or kinked old wire is often unusable due to brittleness and insulation damage, so buying new magnet wire is generally advised. In some cases, purchasing a new or replacement custom transformer may be more cost-effective than attempting repair or rewind, particularly for critical applications or where precise performance is required.
If you choose to repair or rewind, ensure you follow best practices for winding techniques, such as bank winding to distribute voltage stress and preserve insulation integrity, and carefully test the rebuilt transformer for continuity, insulation resistance, and output voltages before use. YouTube tutorials and specialist forums also offer practical advice and demonstrations for this process.
In summary:
- Minor breaks can sometimes be repaired by soldering and re-insulating the broken wire.
- Extensive damage generally requires removing and rewinding the primary winding with new magnet wire, using proper calculations for turns and wire gauge.
- New transformers are a practical alternative if rewind is too complex or costly.
- Safety and precision are crucial to avoid further damage and ensure reliable transformer operation.
How to Repair the Broken Primary Winding
Have you ever wondered how to fix a broken primary winding in a toroidal transformer, especially when a simple replacement isn’t readily available? Knowing how to properly repair the primary winding can save you time and money, while restoring your transformer’s functionality effectively.
Let’s explore the step-by-step approach to repairing a broken primary winding, from identifying the damage, selecting the right materials, to winding and final testing.
Step 1: Assess the Damage and Prepare
Inspect the winding area carefully to locate the exact break or damage. If the break is minor and accessible at the wire ends, you may be able to repair it by reconnecting the broken conductor. However, if the wire insulation is damaged, or the break is deep within the winding layers, rewinding the primary coil is necessary.
Start by carefully unwinding the damaged section, removing old or brittle wire. It is highly recommended to purchase new magnet wire with the appropriate gauge and enamel insulation rather than reusing old wire, since reused wire tends to be twisted, weakened, or scraped.
Step 2: Calculate Wire Length and Number of Turns
Before rewinding, calculate the number of turns needed for the primary winding based on the input voltage and core specifications. For a standard 220V AC (50Hz) input, the number of turns typically correlates with the magnetic core size and desired flux density. Online calculators or manufacturer datasheets can provide exact values; for example, a higher number of turns corresponds to a higher voltage rating.
Also calculate the required wire length considering the number of turns and the mean length of one turn around the toroidal core. This ensures you purchase sufficient wire.

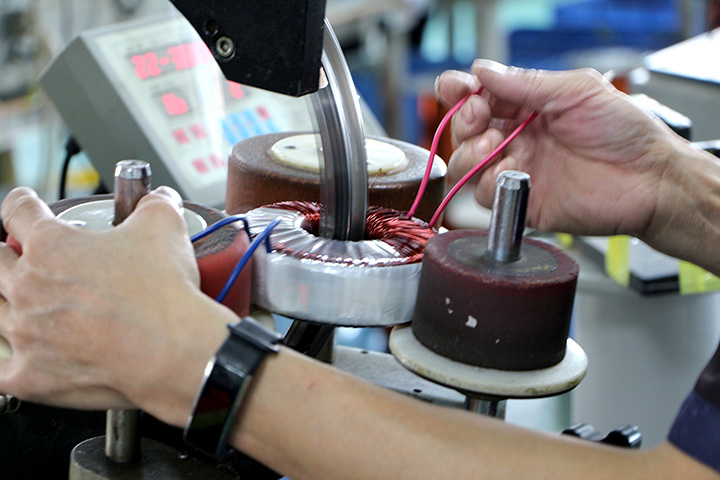

Step 3: Secure the Core and Begin Winding
Fix the toroidal core on a winding mandrel or device to prevent movement. Begin winding the new magnet wire tightly and evenly around the core, layer by layer, maintaining consistent tension and spacing between turns to avoid overlaps or gaps.
Keep track of the number of turns carefully; counting each turn is crucial to ensure the right voltage ratio and transformer performance.
Step 4: Inspect for Insulation and Short Circuits
Periodically check the enamel insulation on the wire to ensure it remains intact and hasn’t been scraped during winding. Damage to insulation can cause shorts between turns. Repair or replace any damaged sections as needed.
Step 5: Finish and Insulate
After completing the winding, apply insulating tape or varnish over the winding layers for mechanical stability and additional electrical insulation.
Step 6: Test the Repaired Winding
Use a multimeter to check continuity and resistance of the primary winding to confirm no open circuits or shorts exist. Perform an insulation resistance test if possible.
Finally, perform a “dim bulb test” by powering the transformer through a series lamp to verify proper function without overloading.
Post-Repair Testing and Quality Checks
After completing the repair of a toroidal transformer’s primary winding, thorough testing and quality checks are essential to verify the work and ensure safe operation. Proper post-repair verification helps prevent unexpected failures, promotes reliable performance, and guards against potential hazards when the transformer is reinstalled in your circuit.
Post-Repair Testing and Quality Checks
1.Visual Inspection
- Carefully examine the rewound or repaired primary winding for any loose ends, exposed wire, or uneven winding that might cause shorts.
- Check that all soldered joints are clean and properly insulated with heat-shrink tubing or insulating tape.
- Ensure there are no remnants of debris, wire whiskers, or poor insulation layers that could create future faults.
2.Continuity and Resistance Testing
- Use a multimeter to measure continuity across the primary winding terminals; a “beep” or low resistance reading (typically a few ohms, depending on design) confirms the wire is not open.
- Compare resistance readings against manufacturer specifications or datasheets if available. Significant deviations may indicate remaining faults.
3.Insulation Resistance Check
- If possible, use an insulation resistance tester (megohmmeter) to test between the primary winding and the core or transformer body.
- Results should show very high resistance, indicating solid insulation and absence of leakage or shorts between winding and core.
4.Functional Testing with Low Voltage
- Perform a “dim bulb test” by inserting an incandescent bulb in series with the primary winding and powering it from a low-voltage AC source. The bulb should briefly light up and then dim, indicating no short circuit. If it stays fully lit, a short remains.
- Measure output voltage from the secondary side to confirm the transformer is stepping voltage as expected.
5.Full Power-Up and Load Test
- Once initial checks pass, connect the transformer to its intended input voltage with appropriate protection (fuse or circuit breaker).
- Use a rated load on the secondary side and verify that output voltage and current match original specifications.
- Monitor temperature and look for signs of overheating, hums, or audible noise.
6.Final Safety Review
- Reinstall the transformer only after confirming stable performance in all tests and double-checking mechanical mounting and terminal insulation.
- Document all test results and repair steps for future reference and maintenance.
When to Consider Replacing vs Repairing
After thoroughly diagnosing and attempting repair on a toroidal transformer’s primary winding, it is important to evaluate whether continuing with repair is practical or if a full replacement is more appropriate. Making this decision carefully can save time, costs, and ensure the reliability and safety of your battery charging system over the long term.
You should consider replacing the transformer instead of repairing it in the following 5 situations
- The primary winding is severely damaged or burnt beyond repair, making rewinding overly complex or unsafe.
- The transformer shows signs of core damage, mechanical deformation, or insulation breakdown that cannot be easily fixed.
- The cost and effort required to rewind or repair the winding exceed the price of a new or replacement transformer.
- The transformer is an older or obsolete model with limited availability of replacement parts or technical support.
- You require guaranteed performance and compliance with updated safety or efficiency standards, which might not be ensured after extensive repairs.
On the other hand, you can repairing in the following 4 situations :
- The damage is localized or minor, such as a single wire break or superficial insulation damage.
- You have access to the right tools, materials, and expertise to carry out precise rewinding or soldering.
- The transformer size and specifications remain suitable for your charger’s requirements without the need for an upgrade.
- Repairing offers a cost-effective, timely solution without compromising reliability or safety.
Ultimately, balancing cost, time, safety, expertise, and expected transformer performance will guide the decision to repair or replace. For critical battery chargers designed with efficiency and safety in mind, ensuring transformer integrity is paramount even if that means opting for replacement.
Common Challenges and Troubleshooting Tips for Repairing Primary Windings in Toroidal Transformers
1.Handling Fragile Enamel Insulation
- Magnet wire is coated in a thin layer of enamel that is easily scraped or damaged during repair or rewinding.
- Damaged insulation can lead to short circuits between adjacent turns.
Solution: Use gentle techniques and non-metallic tools for wire handling, and routinely check insulation before and after winding.
2.Avoiding Turn-to-Turn Short Circuits
Tight toroidal spaces and overlapping wires may inadvertently create shorts during winding.
Solution: Carefully lay each turn side-by-side, avoid crossing wires, and immediately correct any overlaps or tangles. Insulate any wire joins thoroughly.
3.Precise Turn Count and Wire Gauge
Inaccurate counting of turns or using the wrong wire gauge can significantly affect the transformer’s performance, altering voltage and current ratios.
Solution: Mark every tenth or twentieth turn during winding, keep a written tally, and double-check calculations using formulas or datasheet recommendations.
4.Soldering and Joint Quality
Weak or cold solder joints at the windings or terminals can create intermittent connections or spots of high resistance.
Solution: Use a temperature-controlled soldering iron, clean both wire ends before soldering, and insulate joints with heat shrink tubing or high-quality tape.
5.Managing Heat and Thermal Considerations
Toroidal transformers can become hot under heavy loads, especially if the winding is too tight or lacks proper insulation.
Solution: Allow for adequate airflow around the transformer and verify that the repair does not compress the windings too densely, restricting heat dissipation.
6.Preventing Core and Mechanical Damage
Dropping or mishandling the core during repair can chip or distort it, affecting magnetic properties and efficiency.
Solution: Always handle the core with care, secure it during winding, and check for cracks or deformities before re-use.
7.Reliable Testing and Diagnosis
Faulty windings or insulation may be missed without comprehensive testing.
Solution: Perform continuity, resistance, insulation, and live (dim bulb) tests after every repair. Compare results with reference values before reinstallation.
8.Sourcing Proper Materials
Using old, degraded, or incorrect wire and insulation compromises repair longevity.
Solution: Purchase new, properly rated magnet wire and insulation materials that match or exceed original specifications.
Conclusion
Diagnosing and repairing a broken primary winding in a toroidal transformer is not always easy, but it can be a smart way to extend the life of your equipment when done correctly. From identifying early warning signs to carefully performing repairs, every step matters to ensure safety and reliability. However, I always remind customers that such work should be handled by experienced professionals to avoid further damage or safety risks.
