How to Design Common Mode Chokes: A Practical Guide to Manufacturing Process

Electromagnetic interference (EMI) can wreak havoc on electronic systems, disrupting functionality and reliability. That’s where common mode chokes come in—they are critical for filtering EMI, ensuring your devices perform seamlessly.

But here’s the problem: Designing a high-performance common mode choke isn’t simple. From material selection to winding techniques, small mistakes can lead to efficiency losses, unreliable performance, or even failures during manufacturing. For engineers, these challenges can feel like a frustrating maze of trial and error.

That’s why I’ve created this practical guide. In this blog, I’ll walk you through the key manufacturing processes for common mode chokes. From optimizing winding techniques to meeting safety standards, you’ll learn how to create durable, reliable chokes that excel in today’s demanding applications. Ready to refine your design process? Let’s get started!

Key Manufacturing Processes for Common Mode Chokes

1.Magnetic Core Winding Techniques

Have you ever wondered why the choice of winding techniques is critical in the design of common mode chokes? The winding method can significantly impact the choke’s performance, efficiency, and insulation integrity.

This is why understanding the appropriate winding techniques is essential for effective manufacturing.

Winding TechniqueDescription
Use of Peeled Enamel Wires (PEW)Ideal for hand-wound cores with ≥2 layers or ≥2 meters of wire, ensuring better insulation.
Implementation of Split WindingProtects the insulation film during the winding process, reducing the risk of damage and enhancing durability.

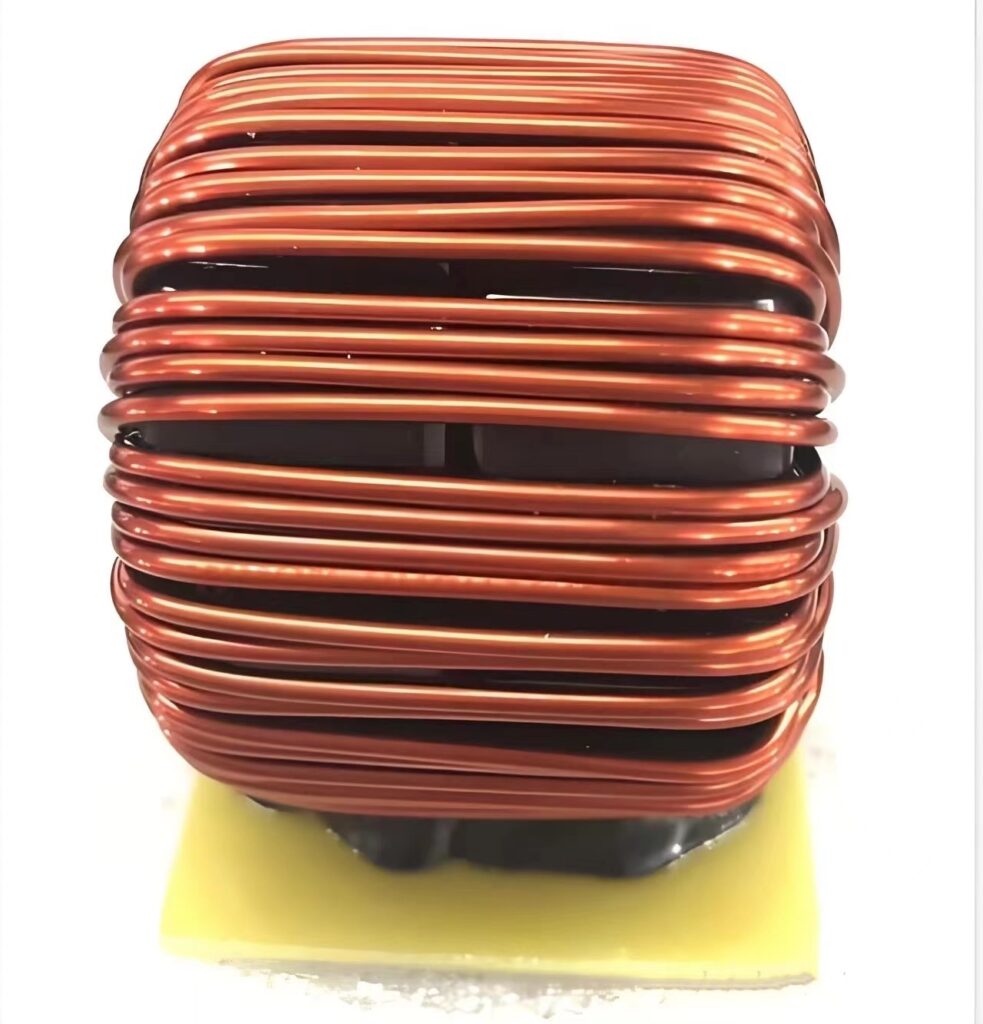

2.Fixing the Core and Base

Have you ever wondered why securing magnetic cores to their bases is essential in the manufacturing of common mode chokes? Proper fixation can prevent issues that may arise during operation, such as core movement and wire breakage.This is why the mandatory use of adhesive in this process is crucial for ensuring reliability.

Fixation MethodDescription
Mandatory Use of AdhesiveSecures magnetic cores to the base, providing a stable foundation for the choke.
Benefits of AdhesivePrevents core movement and reduces the risk of wire breakage during operation, enhancing overall durability.

3.Multi-Wire Winding Design

Have you ever wondered why the choice of wire insulation is crucial in multi-wire winding designs for common mode chokes? The right insulation not only enhances performance but also ensures safety and reliability during operation.

This is why considering a combination of insulated wire (UEW) and triple-insulated wire (TLW) is essential for effective multi-wire winding.

Insulation TypeDescription
Insulated Wire (UEW)Provides basic insulation, suitable for standard winding applications.
Triple-Insulated Wire (TLW)Offers enhanced insulation, reducing the risk of short circuits and improving overall safety in multi-wire designs.

4.Color-Coded Winding for Multi-Wire Designs

Have you ever wondered why color coding is essential in multi-wire winding designs for common mode chokes? Proper color coding can prevent errors during assembly and ensure correct connections, which is critical for the functionality of the choke.

This is why implementing a systematic color-coding scheme for different windings is crucial.

AspectDescription
Importance of Color CodingHelps avoid crossover and incorrect pin connections during assembly, enhancing reliability.
Systematic ApproachUse distinct colors for each winding to facilitate easy identification and reduce assembly errors.

5.Pin Fixation for Base-Free Products

Have you ever wondered why base-free products sometimes struggle to maintain stable pin alignment during board insertion? This is why securing the pins to the magnetic cores with adhesive is critical for reliable assembly.

The main challenges are that without proper fixation, pins can shift or loosen, causing misalignment and difficulty during board insertion. This process involves applying adhesive between the pins and magnetic cores to ensure stability, maintaining precise pin positioning and ensuring compatibility with PCB requirements.

6.Material Selection for SMT and Through-Hole Components

Have you ever wondered why selecting the right wire ratings is crucial for SMT and through-hole components in common mode choke designs? The wire’s temperature rating can significantly affect its performance during soldering and operation. This is why understanding the appropriate wire ratings for different applications is essential.

Component TypeWire RatingDescription
SMT Products180℃Use wires rated for 180℃ to withstand reflow soldering temperatures, ensuring reliability during assembly.
Through-Hole Products155℃Minimum wire rating of 155℃ is required for reliable operation, ensuring performance under various conditions.

7.Winding and Lead Arrangement Guidelines

Have you ever wondered why the number of winding turns in common mode chokes is determined by the diameter of the copper wire? The correct number of turns is crucial for optimizing performance and ensuring effective noise suppression.

This is why specific guidelines for winding turns based on wire diameter are essential in the design process.

Wire Diameter RangeRecommended Turns per PinDescription
Ø0.04mm ≤ Wire Diameter ≤ Ø0.30mm2.0–3.0 turnsSuitable for small gauge wires, allowing for more turns to enhance inductance and noise suppression.
Ø0.30mm < Wire Diameter ≤ Ø0.50mm1.5–2.0 turnsBalanced turns to maintain performance while accommodating slightly thicker wire.
Ø0.50mm < Wire Diameter ≤ Ø0.80mm1.0–1.5 turnsFewer turns required as wire diameter increases, focusing on efficiency and stability.
Ø0.80mm < Wire Diameter0.8–1.0 turnsMinimal turns to prevent saturation and ensure optimal performance with larger gauge wires.

8.Material Considerations for SMT Terminals

Have you ever wondered why the choice of materials for SMT terminals is critical in common mode choke designs? The right materials can significantly influence soldering quality and overall reliability.
This is why selecting appropriate materials, such as copper or copper alloys, is essential for effective SMT terminal performance.

Material TypeDescription
Copper or Copper AlloysRecommended for SMT terminals to prevent poor soldering, ensuring strong electrical connections.
Prohibition of Iron-Nickel AlloysAvoid using iron-nickel alloys to prevent cold solder joints, which can lead to unreliable performance.

9.Preferred Pin Design for SMT Products

Have you ever wondered why some common mode chokes lack mechanical stability or have unreliable solder connections? This is why choosing the right pin design is essential for ensuring both stability and soldering quality.

The main challenges are that pinless designs often compromise mechanical support and can lead to weaker solder joints. This process involves using L-shaped pins, which provide better mechanical stability by firmly anchoring the choke. Additionally, L-shaped pins enhance soldering reliability by ensuring more consistent and robust connections during the assembly process.

10.Coplanarity Requirements

Have you ever wondered why some SMT products fail to align properly during PCB assembly, leading to defects? This is why maintaining precise coplanarity is critical for ensuring high-quality PCB assembly.

The main challenges are that uneven terminals can cause improper contact with the PCB, leading to soldering issues and unreliable connections. This process involves ensuring coplanarity with a tolerance of ≤0.15mm for SMT products. Adhering to this standard improves alignment, enhances soldering accuracy, and ensures reliable connections in the final assembly.

11.Soldering Temperature and Time Standards

Have you ever wondered why specific soldering temperatures and times are crucial for different wire diameters in common mode choke designs? Proper soldering conditions can significantly affect the reliability and performance of the components.

This is why adhering to precise soldering guidelines based on wire diameter is essential for effective manufacturing.

Wire Diameter RangeSoldering TemperatureSoldering Time
Ø0.04mm ≤ Wire Diameter ≤ Ø0.20mm370°C ± 20°C2–3 seconds
Ø0.20mm < Wire Diameter ≤ Ø0.50mm390°C ± 20°C2–3 seconds
Ø0.50mm < Wire Diameter390°C ± 20°C3–4 seconds

Conclusion:

Designing common mode chokes requires precision and a thorough understanding of manufacturing techniques. From optimizing winding methods and securing magnetic cores to selecting appropriate materials for SMT and through-hole components, each process plays a crucial role in ensuring superior performance and reliability.

By implementing these techniques, you can enhance your designs, achieve compliance with industry standards, and avoid common pitfalls that compromise product quality. These processes not only improve the functionality of your chokes but also ensure long-term durability and trust in your products.

Ready to put these insights into practice? Whether you’re looking to refine your existing processes or explore tailored solutions for your specific needs, now is the time to act. Let’s work together to bring your designs to the next level. Contact us today for expert guidance and support!
