Have you ever wondered how to safeguard your toroidal transformer from overheating? Overheating is a common but serious concern that can jeopardize the safety and reliability of your equipment. Without proper thermal protection, transformers are at risk of insulation damage, reduced lifespan, or even catastrophic failures like fires.
Thermal protectors act as critical safety devices that detect excessive temperature rises and promptly interrupt the power supply to prevent damage. This protection is especially important in toroidal transformers, which are praised for their efficiency but still generate heat during operation.
If a thermal protector is missing or poorly chosen, the consequences can be costly—ranging from equipment downtime to hazardous failures that endanger both devices and people. In this blog post, I’ll walk you through how to select the most suitable thermal protector for your toroidal transformers so you can ensure optimal performance, safety, and longevity.
What Is a Thermal Protector in toroidal transformers?
A thermal protector in toroidal transformers is a safety device designed to prevent overheating, which can lead to damage, fire hazards, or a shortened lifespan . Toroidal transformers, characterized by their doughnut-shaped core and efficient design, can still generate heat during operation.
The primary function of a thermal protector is to cut off the power supply to the transformer when its internal temperature or the ambient temperature surrounding it reaches a preset, unsafe level . This is typically achieved through a bimetallic strip inside the protector that deforms and separates contacts, creating an open circuit.

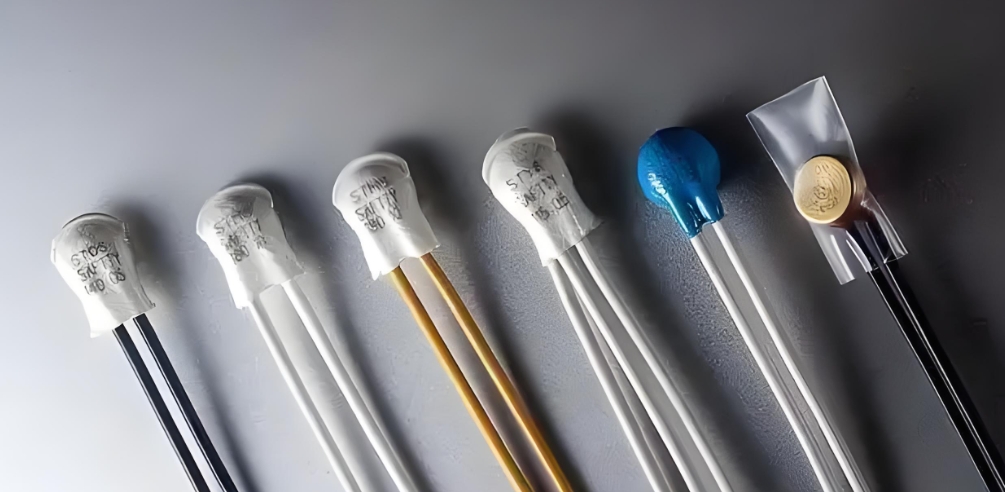

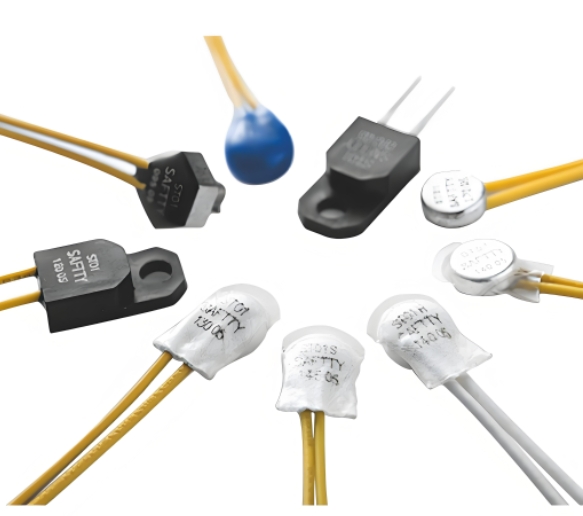

There are two main types of thermal protectors for toroidal transformers:
- One-shot fuses (or cut-off fuses): These devices trip at a preset temperature primarily to protect against internal transformer faults. Once they open, they must be replaced.
- Auto-resettable thermal switches: These provide intermittent protection against internal faults and external overloads. They open at a preset high temperature and automatically close (reset) once the temperature drops to a safe level.
Thermal protectors are typically installed inside the transformer, either embedded in the coil for accurate and sensitive temperature detection or placed on the coil surface and secured with insulating tape . They are wired in series with the primary or secondary winding to effectively interrupt the power flow when an over-temperature condition is detected
Why Do Toroidal Transformers Need Thermal Protectors?
Toroidal transformers need thermal protectors despite their efficient design and lower heat generation for 4 important reasons:
- Prevent Overheating and Damage: Although toroidal transformers produce less heat due to superior efficiency and uniform heat distribution, they still generate heat under load. Thermal protectors are vital to detect excessive temperatures and disconnect power to prevent insulation breakdown and permanent damage. Overheating risks remain especially under heavy load, prolonged duty cycles, or constrained cooling conditions.
- Enhance Reliability and Safety: Thermal protectors improve operational reliability by preventing thermal stress that accelerates aging and failures. Protecting transformers from overheating also reduces the risk of fire hazards or catastrophic failures, ensuring safe equipment operation in residential, industrial, or medical settings.
- Maintain Performance Under Load Variations: Toroidal transformers can handle higher operating temperatures and occasional overloads, but thermal protectors act as safeguards against unexpected spikes or malfunctions, helping maintain stable output voltage and prolonging lifespan.
- Support Compact, High-Density Designs: The compact size and enclosed nature of toroids limit natural airflow and cooling options. Thermal protectors provide an essential fail-safe to compensate for these restricted cooling conditions.
Key Factors to Consider When Choosing a Thermal Protector for Toroidal Transformers？
When choosing a thermal protector for toroidal transformers, several key factors must be taken into account to ensure effective and reliable overheating protection:
- Rated Action Temperature: The thermal protector’s trip temperature should align with the transformer’s insulation class and maximum allowable winding temperature (commonly 130°C, 150°C, 155°C, or 180°C) to prevent insulation damage without causing unnecessary tripping.
- Current and Voltage Ratings: The protector must support the transformer’s rated current and voltage. Overloading the protector can reduce its lifespan or cause premature failure.
- Type of Thermal Protector: Decide between one-shot fuses for permanent protection against severe faults or auto-resettable thermal switches that reopen automatically once cooled, suitable for intermittent overloads.
- Installation Location and Method: Accurate temperature sensing requires placing the protector either embedded in the coil or on the coil surface with insulation tape. Embedding ensures more sensitive and precise temperature detection.
- Environmental Conditions: Consider ambient temperature, vibration, humidity, and airflow in the operating environment. The protector should maintain functionality under these conditions and fit within the transformer’s thermal management design.
- Load and Duty Cycle: Match the protector to the transformer’s load profile and duty cycle. Transformers with heavy or continuous loads may require thermal protectors with higher ratings or faster response times.
- Compliance and Safety Standards: Ensure the thermal protector complies with relevant industry and safety certifications to meet regulatory requirements and guarantee safe operation across applications such as medical, industrial, or consumer electronics.
How Many Types of Thermal Protectors Are Used in Toroidal Transformers?
When it comes to protecting toroidal transformers from excessive heat, not all thermal protectors work the same way. Each type is designed to respond differently to overheating events and offers distinct advantages depending on the application. To help you make an informed choice, let me explain the two most commonly used thermal protection methods in toroidal transformers.
There are two main types of thermal protectors commonly used in toroidal transformers:
1.One-Shot Fuse (Cut-off Fuse)
- Primarily designed for protection against internal transformer faults.
- It trips once at a preset high temperature and must be replaced after activation.
- Provides permanent disconnection to prevent damage or fire hazards in severe overheating scenarios.
2.Auto-Resettable Thermal Switch
- Provides intermittent protection for both internal faults and temporary overloads.
- Opens when a preset temperature threshold is reached, interrupting the circuit.
- Automatically resets (closes) once the temperature falls back to a safe level, allowing transformer operation to resume without manual intervention.
Both types work on the principle of a bimetallic element that reacts to temperature changes by deforming and breaking or making electrical contact. They are typically installed inside the transformer — either embedded in the coil for accurate temperature sensing or mounted on the coil surface, connected in series with the winding to cut off power when overheating is detected.
Selecting between these two depends on the application’s safety requirements, expected load conditions, and maintenance considerations.
Matching Thermal Protector to Transformer Insulation Class
Matching a thermal protector to a toroidal transformer’s insulation class is crucial to ensure effective protection without compromising reliability.
Thermal class ratings define the maximum temperature that the transformer’s insulation can safely endure. For example, common insulation classes are:
- Class A: 105°C
- Class E: 120°C
- Class B: 130°C
- Class F: 155°C
- Class H: 180°C and above
When selecting a thermal protector, its trip temperature must be at or below the transformer’s insulation class maximum temperature rating to prevent insulation damage. For instance, if your toroidal transformer uses Class F insulation rated for 155°C, a thermal protector that trips around or below this temperature range ensures the winding temperature does not exceed the insulation limit.
Operating a transformer beyond its insulation class temperature accelerates insulation aging and significantly shortens lifespan. Therefore, choosing a thermal protector with a suitable trip point aligned to the insulation class provides a vital safety margin to avoid premature failure.
Furthermore, consider the transformer’s ambient operating temperature and expected winding temperature rise to calculate total hotspot temperature and select the corresponding thermal protector accordingly. This matching guarantees that the protector activates in time to preserve insulation integrity without causing nuisance trips
How to Properly Install Thermal Protectors in Toroidal Transformers?
Installing a thermal protector in a toroidal transformer is not just about attaching a component. It requires careful attention to placement, wiring, and safety to ensure the protector performs its role effectively. A proper installation helps the thermal protector detect heat accurately and respond in time to prevent damage. Below, I will walk you through the essential steps to install thermal protectors correctly and keep your transformer running reliably.
To properly install thermal protectors in toroidal transformers, follow 6 key steps:
1.Choose the Correct Installation Location
Thermal protectors must be installed where they can accurately sense the winding heat. This typically means embedding the thermal protector within the transformer winding or securely attaching it on the surface of the coil using insulating tape or appropriate mounting methods. Embedding ensures quicker temperature detection, while surface mounting is easier but slightly less precise.
2.Wiring Configuration
Connect the thermal protector in series with the transformer’s primary or secondary winding. This wiring ensures that when the protector activates (opens due to overheating), it interrupts current flow and shuts down the transformer, preventing damage.
3.Secure Mounting Without Damage
Use appropriate mounting hardware such as brackets, felt washers, or neoprene cushions to attach the transformer assembly firmly but without over-tightening, which could damage the protector or transformer core. Maintain correct orientation: ensure that wires emerge from the protector from the side away from mounting brackets and are not twisted or stressed.
4.Protect Electrical Connections
Insulate all wiring connections properly using wire nuts or crimp connectors and follow local electrical codes. Ground the transformer appropriately.
5.Follow Manufacturer Guidelines
Always refer to specific installation instructions from the thermal protector and transformer manufacturer to verify trip temperatures, wiring diagrams, and mounting methods. For example, as described in various transformer manuals, the protector’s placement, attachment method, and electrical connection details may vary slightly based on model and application.
6.Test After Installation
Once installed, power up the transformer under controlled conditions and verify the thermal protector functions correctly opens at the rated temperature and resets properly (if auto-reset type).
What’s the difference between a thermal fuse and a thermal protector?
The main difference between a thermal fuse and a thermal protector lies in their operation and reset capability:
- A thermal fuse is a one-time, non-resettable safety device that permanently breaks the electrical circuit when the temperature exceeds a specific threshold. It typically contains a fusible element that melts at the cutoff temperature, interrupting current flow to prevent overheating hazards. Once triggered, the thermal fuse must be replaced to restore functionality.
- A thermal protector (often called a thermal switch or thermal cutoff) is a resettable, electro-mechanical on/off switch that opens the circuit when a preset temperature is reached but automatically closes again once the device cools down to a safe level. It usually uses a bimetallic strip that bends with temperature changes, mechanically opening or closing contacts. Thermal protectors are designed for temporary over-temperature conditions and can protect against common, user-correctable faults.
In summary:
| Feature | Thermal Fuse | Thermal Protector (Switch) |
| Operation | One-time irreversible cut-off | Reusable, resets when cooled |
| Mechanism | Fusible element melts | Bimetallic strip switches contacts |
| Typical use | Permanent protection from severe faults or fire risk | Protection from temporary overloads or faults |
| Replacement | Must be replaced after activation | Resets automatically; no replacement needed |
Both devices are critical for preventing overheating in electrical equipment, but the choice depends on whether a one-time permanent cutoff or a resettable protective switch is needed.
Is it necessary to use thermal protectors for low-power toroidal transformers?
For low-power toroidal transformers, using thermal protectors is generally not always strictly necessary, but it is still a highly recommended safety measure depending on the application and operating conditions.
Toroidal transformers generate less heat compared to traditional transformers due to their efficient core design and lower magnetizing current. However, even low-power units can experience overheating from internal faults, overloads, or inadequate cooling. Thermal protectors such as one-shot fuses or auto-resettable thermal switches serve to disconnect the transformer before temperatures reach levels that could damage insulation or create fire risks.
In many safety-critical or regulated environments (medical, industrial, audio equipment), thermal protection may be mandatory regardless of transformer power rating to meet standards and ensure reliability. If your low-power transformer operates in a sealed enclosure or under continuous heavy loads, thermal protection is particularly advisable to prevent failures.
Ultimately, whether you must use a thermal protector depends on your specific risk analysis, application demands, and compliance requirements. When in doubt, consulting with transformer experts like Unicreed can help you choose the right protection to suit both safety and operational needs.
How can Unicreed help me select the most suitable thermal protection for my transformer application?
At Unicreed, I understand that every application comes with unique thermal challenges. That is why we go beyond simply supplying toroidal transformers. We work with you to analyze your specific operating conditions and recommend the most effective thermal protection solution.
Here is how I can support you:
Application Analysis
I will assess your transformer’s working environment, load cycles, and ambient temperature to determine the heat risks.
Expert Recommendation
Based on your thermal class requirements and safety standards, I will suggest the right type of thermal protection, such as bimetallic thermal protectors, thermal fuses, or PTC thermistors.
Custom Integration
If needed, Unicreed can integrate thermal protection directly into the transformer design for compact and reliable performance.
Compliance and Certification Support
We ensure all thermal protection solutions meet international safety standards like UL, CE, and EN61558.
