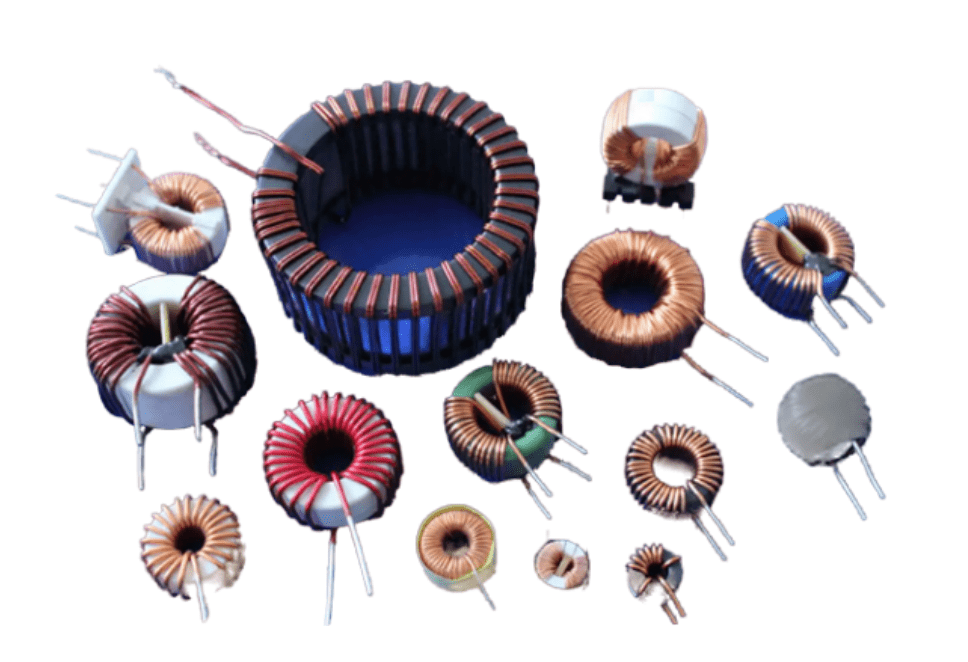

How to choose a common mode inductor core？

Common mode inductors are essential components in electronic circuits that play a crucial role in suppressing common mode noise. In many applications, noise interference can degrade signal quality and disrupt proper circuit operation. Common mode inductors are specifically designed to address this issue by attenuating common mode noise, which refers to the unwanted noise present on both signal lines with respect to a common reference point.

The selection of an appropriate core for common mode inductors is of utmost importance as it directly impacts their performance and effectiveness in noise reduction. The core material, shape, size, and other factors significantly influence the inductor’s impedance, frequency response, and power handling capabilities. Therefore, understanding the various considerations in core selection is vital for achieving optimal performance and meeting the requirements of specific applications.

What is a common mode inductor and what is its purpose?

A common mode inductor, also known as a common mode choke, is a type of inductor specifically designed to suppress common mode noise in electronic circuits. Common mode noise refers to unwanted electrical signals that appear in both the supply and return lines of a circuit, typically originating from external sources such as electromagnetic interference (EMI) or radio frequency interference (RFI).

The purpose of a common mode inductor is to filter out and attenuate common mode noise, while allowing the desired differential mode signals (the difference between the supply and return lines) to pass through unaffected. By doing so, it helps to maintain signal integrity, reduce electromagnetic emissions, and improve the overall performance and reliability of electronic systems.

Common mode inductors are widely used in various applications, including power supplies, data communication systems, audio amplifiers, and motor drives, where the presence of common mode noise can degrade performance or cause malfunctions. They are typically placed in series with the power or signal lines and provide impedance to common mode signals while minimizing the impact on differential mode signals.

Why is choosing the right core important for common mode inductors?

Choosing the right core is crucial for common mode inductors due to below 5 important reasons:

1.Performance:

The core material and design directly impact the performance of the common mode inductor. The core determines important characteristics such as inductance, impedance, frequency response, and magnetic coupling. By selecting the appropriate core, you can optimize the performance of the inductor for common mode noise suppression and ensure efficient operation in the desired frequency range.

2.Noise Suppression:

Common mode inductors are specifically designed to attenuate common mode noise. The core material plays a vital role in providing the necessary magnetic properties to effectively block or impede the passage of common mode signals. Choosing the right core ensures that the inductor can efficiently suppress common mode noise and maintain signal integrity.

3.Saturation and Power Handling:

Different core materials have varying saturation levels and power handling capabilities. Saturation occurs when the magnetic flux in the core reaches its maximum limit, resulting in a significant drop in inductance and loss of performance. By selecting a core with appropriate saturation characteristics and power handling capabilities, you can ensure that the inductor can handle the expected current levels without saturation or performance degradation.

4.Size and Efficiency:

The core shape, size, and material directly impact the size and efficiency of the common mode inductor. Core selection affects parameters such as physical dimensions, winding configurations, and stray capacitance. By choosing the right core, you can optimize the size and efficiency of the inductor, making it more compact, lightweight, and effective in its noise suppression capabilities.

5.EMI/EMC Compliance:

Many electronic systems must comply with electromagnetic interference (EMI) and electromagnetic compatibility (EMC) standards. The core material and design significantly influence the inductor’s ability to reduce electromagnetic emissions and meet the required compliance levels. Selecting a core with suitable EMI/EMC characteristics ensures that the common mode inductor contributes to overall system compliance.

What are the different core materials used for common mode inductors?

Common mode inductors utilize various core materials, each with its own characteristics and suitability for different applications. Here are sive commonly used core materials for common mode inductors:

1.Ferrite:

Ferrite cores, made from a ceramic material composed of iron oxide and other metal oxides, are widely used in common mode inductors. Ferrite cores offer high permeability, which allows for effective common mode noise suppression in a wide frequency range. They are relatively inexpensive, have good thermal stability, and are available in various shapes and sizes.

2.Powdered Iron:

Powdered iron cores consist of iron particles mixed with a binder material. They provide high magnetic permeability and are capable of handling high currents. Powdered iron cores are commonly used in high-power applications where high inductance values and low core losses are required.

3.Manganese-Zinc (MnZn) Ferrite:

MnZn ferrite cores have higher saturation levels compared to regular ferrite cores, making them suitable for applications that require higher currents or have larger voltage swings. They offer good frequency response and are often used in power electronics and industrial applications.

4.Nickel-Zinc (NiZn) Ferrite:

NiZn ferrite cores have higher permeability compared to MnZn ferrite cores, making them suitable for applications that require higher impedance levels at lower frequencies. They are commonly used in power supplies, noise filters, and EMI suppression applications.

5.Amorphous Metal:

Amorphous metal cores, also known as metallic glass cores, are made from alloys with a non-crystalline atomic structure. They offer low core losses, high saturation levels, and excellent high-frequency characteristics. Amorphous metal cores are suitable for high-frequency applications, such as high-speed data communication and power conversion systems.

6.Nanocrystalline:

Nanocrystalline cores are composed of a combination of amorphous and crystalline structures. They provide excellent magnetic properties, high saturation levels, and low core losses. Nanocrystalline cores are commonly used in high-frequency power applications and where high-performance common mode filtering is required.

How does the core material affect the performance of a common mode inductor?

The core material has a significant impact on the performance of a common mode inductor. Here are 6 key ways in which the core material affects its performance:

1.Permeability:

The core material’s permeability determines the inductor’s ability to store magnetic energy. Higher permeability materials allow for increased inductance, resulting in better common mode noise suppression. Ferrite cores, for example, have high permeability and are commonly used in common mode inductors.

2.Frequency Response:

Different core materials have different frequency response characteristics. The core material affects the inductor’s impedance at different frequencies, influencing its effectiveness in attenuating common mode noise across a range of frequencies. Ferrite cores exhibit good frequency response and are effective in suppressing common mode noise in a wide frequency range.

3.Core Losses:

Core materials vary in their magnetic properties and associated losses. Core losses, including hysteresis losses and eddy current losses, can impact the efficiency and performance of the inductor. Materials with low core losses, such as amorphous metal or nanocrystalline cores, are preferred for applications that require high efficiency and low power dissipation.

4.Saturation Characteristics:

The core material’s saturation characteristics determine the maximum magnetic flux it can handle before experiencing a significant drop in inductance. Choosing a core material with appropriate saturation characteristics ensures that the inductor can handle the expected current levels without saturation, maintaining performance and preventing distortion.

5.Temperature Stability:

Different core materials have varying temperature coefficients and stability. Temperature changes can affect the inductance and impedance characteristics of the inductor. Core materials with good temperature stability help maintain consistent performance over a wide range of operating temperatures.

6.Size and Packaging:

Core materials also impact the physical size and packaging of the inductor. Some materials allow for compact designs, while others may require larger sizes or different form factors. Choosing the right core material can help optimize the size, weight, and overall footprint of the inductor.

It is essential to consider the specific requirements of the application when selecting the core material. Factors such as frequency range, power levels, efficiency, temperature stability, and cost must be carefully evaluated to choose the core material that best meets the desired performance criteria.

What are the key factors to consider when selecting a core material?

When selecting a core material for a common mode inductor, several key factors should be considered. These factors help determine the suitability of the core material for the specific application and its impact on the inductor’s performance. Here are the key factors to consider:

1.Permeability:

The core material’s permeability determines the inductance and impedance characteristics of the inductor. Higher permeability materials allow for increased inductance and better common mode noise suppression. The permeability should be chosen based on the desired inductance and the frequency range of operation.

2.Frequency Range:

The core material should be selected based on the frequency range of the signals and noise to be filtered. Different materials have varying frequency response characteristics, and the core material should exhibit good performance across the desired frequency range.

3.Saturation Characteristics:

The saturation characteristics of the core material determine the maximum magnetic flux it can handle before experiencing saturation. It is important to choose a core material that can handle the expected current levels without saturation, ensuring consistent performance and preventing distortion.

4.Core Losses:

Core losses, including hysteresis losses and eddy current losses, can impact the efficiency and performance of the inductor. Materials with low core losses, such as amorphous metal or nanocrystalline cores, are preferred for applications that require high efficiency and low power dissipation.

5.Temperature Stability:

The core material’s temperature coefficient and stability should be considered, as temperature changes can affect the inductance and impedance characteristics of the inductor. It is important to choose a core material with good temperature stability to ensure consistent performance over a wide range of operating temperatures.

6.Size and Packaging:

The physical size and packaging of the core material should be evaluated based on the space constraints and form factor of the application. Some materials allow for compact designs, while others may require larger sizes or different form factors.

7.Cost and Availability:

The cost and availability of the core material should also be taken into account. Different core materials have varying costs, and their availability in the required quantities should be considered to ensure feasibility and cost-effectiveness of the overall design.

How does the core shape and size impact the performance of a common mode inductor?

The core shape and size play a crucial role in determining the performance of a common mode inductor. Here are five key ways in which the core shape and size impact its performance:

1.Inductance and Impedance:

The core shape and size directly affect the inductance and impedance characteristics of the inductor. The core acts as a magnetic pathway, and its shape and size influence the number of turns and the magnetic field distribution. Changes in the core shape and size can alter the inductance value and impedance, affecting the overall performance and effectiveness of common mode noise suppression.

2.Magnetic Coupling:

The core shape and size impact the magnetic coupling between the windings. A well-designed core shape can enhance the magnetic coupling, improving the common mode noise rejection capabilities of the inductor. Properly configured core shape and winding arrangement can minimize leakage inductance and maximize magnetic coupling, leading to better performance.

3.Stray Capacitance:

The core shape and size also influence the stray capacitance of the inductor. Stray capacitance is the capacitance that exists between the windings and the core. It can impact the high-frequency behavior of the inductor and affect its overall performance. By carefully selecting the core shape and size, the stray capacitance can be minimized, leading to improved performance in high-frequency applications.

4.Resonance and Self-Resonant Frequency:

The core shape and size can affect the resonance and self-resonant frequency of the inductor. The resonance occurs when the inductance and stray capacitance combine to create a parallel resonant circuit. The core shape and size influence the inductance and capacitance values, and careful design can ensure that the inductor operates away from the self-resonant frequency, maximizing its performance across the desired frequency range.

5.Size and Packaging:

The physical size and packaging of the core impact the overall size, weight, and footprint of the inductor. Smaller core sizes allow for more compact designs, making the inductor suitable for applications with space constraints. The core shape and size should be chosen to optimize the overall size and efficiency of the inductor.

What is the relationship between the core shape and the inductor’s inductance value?

The core shape of an inductor has a direct influence on its inductance value. The inductance of an inductor is primarily determined by the number of turns of wire around the core and the magnetic field generated within the core.

The core shape affects the magnetic field distribution and the coupling between the magnetic field and the windings. Here are some key relationships between the core shape and the inductance value:

1. Core Size and Cross-Sectional Area: The size and cross-sectional area of the core impact the inductance value. A larger core size and cross-sectional area allow for more magnetic flux to pass through the core, resulting in higher inductance. Conversely, a smaller core size reduces the amount of magnetic flux, leading to lower inductance.
2. Core Length: The length of the core also influences the inductance value. A longer core increases the overall magnetic path length, resulting in higher inductance. On the other hand, a shorter core decreases the magnetic path length and reduces the inductance value.
3. Core Shape and Magnetic Coupling: The shape of the core affects the magnetic coupling between the windings. A well-designed core shape can enhance the magnetic coupling, increasing the inductance value. The core shape determines how closely the windings are wrapped around the core and the degree of magnetic interaction between them. Maximizing the magnetic coupling helps maximize the inductance value.
4. Core Material: Although not directly related to the shape, the choice of core material also affects the inductance value. Different core materials have different magnetic permeabilities, which influence the amount of magnetic flux that can be contained within the core. Higher permeability materials, such as ferrite, allow for higher inductance values compared to materials with lower permeability

What is the impact of core losses on the performance of a common mode inductor?

Core losses can have a significant impact on the performance of a common mode inductor. Core losses refer to the energy dissipated as heat within the core material during the operation of the inductor. There are two primary types of core losses:

• Hysteresis Losses: Hysteresis losses occur due to the repeated magnetization and demagnetization of the core material in response to alternating currents. This phenomenon leads to energy losses within the core as it undergoes magnetic flux reversals. Hysteresis losses depend on the core material’s magnetic properties, such as coercivity and remanence. Materials with higher coercivity and remanence tend to have lower hysteresis losses.
• Eddy Current Losses: Eddy current losses result from the circulating currents induced within the core material due to the changing magnetic field. These circulating currents create small loops of current flow within the core, leading to resistive losses. Eddy current losses are influenced by the core material’s electrical conductivity and the frequency of the alternating magnetic field. Materials with high electrical conductivity, such as copper, experience higher eddy current losses.

The impact of core losses on the performance of a common mode inductor includes:

1. Efficiency: Core losses contribute to overall energy dissipation, reducing the efficiency of the inductor. Higher core losses mean more energy is wasted as heat, resulting in decreased overall efficiency.
2. Temperature Rise: Core losses generate heat within the inductor, leading to a temperature rise. Excessive temperature rise can degrade the performance of the inductor and, in extreme cases, cause thermal failure. Therefore, managing core losses is crucial to prevent excessive temperature rise and maintain reliable operation.
3. Power Handling Capability: Core losses limit the maximum power handling capability of the inductor. Excessive core losses can lead to core saturation or thermal issues when the inductor operates under high power levels. Selecting a core material with low core losses allows for higher power handling capability and improved performance.
4. Frequency Response: Core losses can also impact the frequency response of the inductor. Higher core losses at certain frequencies can affect the inductor’s impedance characteristics and its ability to suppress common mode noise across the desired frequency range.

To mitigate the impact of core losses, it is important to carefully select a core material that offers low core losses for the specific application. Materials such as amorphous metal or nanocrystalline cores are known for their low core losses and are often preferred in applications that require high efficiency and minimal power dissipation. Additionally, optimizing the core design, such as reducing core thickness or using laminated cores, can help minimize core losses and enhance overall inductor performance

What are the trade-offs between core size and performance in common mode inductors?

When considering the trade-offs between core size and performance in common mode inductors, fivel factors come into play. Here are the key trade-offs to consider:

1.Inductance and Impedance:

Generally, larger core sizes tend to result in higher inductance values. A larger core allows for more turns of wire, increasing the magnetic field and, consequently, the inductance. Higher inductance can improve the common mode noise suppression capability of the inductor. However, larger core sizes may also lead to increased parasitic capacitance and reduced high-frequency impedance, affecting the inductor’s performance at higher frequencies.

2.Physical Size and Space Constraints:

The size of the core directly affects the overall size and footprint of the common mode inductor. In applications with limited space, such as portable devices or compact circuit boards, smaller core sizes may be preferred to achieve the desired functionality. However, reducing the core size can result in lower inductance and may limit the current-carrying capacity of the inductor.

3.Magnetic Coupling and Noise Suppression:

Core size impacts the magnetic coupling between the windings and, consequently, the effectiveness of common mode noise suppression. Larger cores provide more space for the windings, enhancing magnetic coupling and improving noise suppression. Smaller cores, on the other hand, may result in weaker magnetic coupling and reduced noise attenuation. The core size must be chosen carefully to strike a balance between magnetic coupling and size constraints.

4.Saturation and Power Handling:

Core size influences the maximum current and power handling capability of the inductor. Larger core sizes typically offer higher saturation current levels and can handle more power without experiencing core saturation. Smaller cores may have limitations on the maximum current they can handle. Therefore, the core size must be selected based on the anticipated current levels and power requirements of the application.

5.Frequency Response:

Core size affects the frequency response of the inductor. Larger cores tend to have lower self-resonant frequencies and better performance at lower frequencies. Smaller cores may have higher self-resonant frequencies and exhibit limitations at higher frequencies. The desired frequency range of operation should be considered when selecting the core size to ensure optimal performance.

What are the challenges and considerations for high-frequency applications when selecting a common mode inductor core?

1. When selecting a common mode inductor core for high-frequency applications, several challenges and considerations arise due to the unique characteristics and requirements of high-frequency operation. Here are some of the key challenges and considerations.
2. Core Material Selection: High-frequency applications often require core materials with low core losses and high magnetic permeability to minimize energy dissipation and maximize inductance. Materials such as ferrite, nanocrystalline alloys, or other specialized high-frequency core materials are commonly used to meet these requirements.
3. Core Losses: Core losses become more significant at higher frequencies due to the increased rate of magnetic flux variation. It is crucial to select a core material with low hysteresis and eddy current losses to minimize energy dissipation and maintain high efficiency. Core loss characteristics, including frequency-dependent loss curves, should be carefully evaluated to ensure optimal performance at the desired frequency range.
4. Impedance Characteristics: High-frequency applications often have specific impedance requirements. The core material and geometry directly influence the inductor’s impedance characteristics, such as self-resonant frequency and impedance magnitude. Careful consideration should be given to selecting a core that provides the desired impedance characteristics within the frequency range of interest.
5. Parasitic Capacitance: In high-frequency applications, the parasitic capacitance of the inductor becomes more significant. The core size, shape, and winding configuration can impact the parasitic capacitance, potentially affecting the inductor’s performance and resonant behavior. Minimizing parasitic capacitance through careful core design and winding techniques is crucial for maintaining high-frequency performance.
6. Frequency Range: The core material’s permeability and frequency response should match the desired frequency range of operation. Some core materials may exhibit non-linear frequency response or limitations at certain frequencies. It’s important to select a core material that offers a wide operating frequency range and maintains its performance characteristics throughout the desired frequency spectrum.
7. Temperature Considerations: High-frequency operation can generate heat in the inductor, which can affect its performance and reliability. Core materials with good thermal conductivity and low thermal resistance help dissipate heat efficiently and minimize temperature rise. Additionally, thermal management techniques, such as proper heat sinking or ventilation, should be considered to maintain stable operation.
8. EMI/EMC Considerations: High-frequency circuits are susceptible to electromagnetic interference (EMI) and electromagnetic compatibility (EMC) issues. The core material and design should provide effective electromagnetic shielding and noise suppression capabilities. Factors like magnetic coupling, shielding effectiveness, and stray capacitance should be carefully evaluated to ensure compliance with EMI/EMC regulations.
9. Design Validation: Prototyping and testing are critical for validating the performance of common mode inductors in high-frequency applications. Simulation tools, such as finite element analysis (FEA) or electromagnetic simulation software, can help in evaluating different core options and predicting their performance at specific frequencies. Physical testing and measurements are necessary to verify the actual behavior and fine-tune the design.

In high-frequency applications, the selection of the core material, core geometry, and winding techniques play a crucial role in achieving the desired performance. Understanding the challenges and considerations specific to high-frequency operation allows for informed decisions when choosing a common mode inductor core for such applications.

Choosing the right core for common mode inductors is of utmost importance in ensuring their effectiveness and overall circuit performance. The core directly influences key characteristics such as inductance, impedance, power handling capability, and frequency response. It determines the ability of the inductor to suppress common mode noise and maintain stable operation.

In conclusion, the choice of a common mode inductor core is a critical step in designing reliable and efficient circuits. By selecting the right core based on specific circuit and application requirements, engineers and designers can achieve enhanced noise suppression, improved power handling, and optimal performance, ensuring the success of their electronic systems.
