In my years of working in the transformer and magnetic components industry, I’ve seen just how common and frustrating electromagnetic interference, or EMI, can be. It creeps into modern electronic systems from switching power supplies, wireless signals, and long cables, causing instability, noise, and even system failure. When it comes to sensitive applications like medical devices, industrial control systems, or smart electric meters, even a small amount of interference can lead to serious performance issues.
Many of the customers I work with have struggled to track down the source of noise in their circuits. They spend time and resources troubleshooting without realizing that the solution is often simple.
That is why I always recommend using a common mode choke. This small yet powerful component filters out unwanted EMI before it enters the circuit. In this blog, I’ll show you how common mode chokes work and why they are essential for precision noise suppression.
What is a common mode choke and what is its function in electronic circuits?
A common mode choke is a type of passive electronic component used to suppress unwanted electromagnetic interference (EMI) or noise in electronic circuits, especially in power and signal lines.

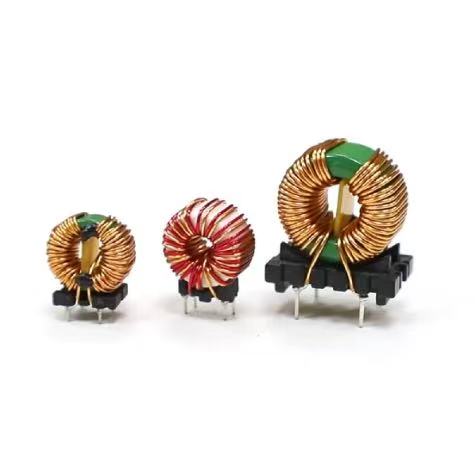

In simple terms, it consists of two or more coils wound on a magnetic core, designed to block noise signals that are common to both lines (called common mode noise) while allowing the desired signals (differential mode current) to pass through.
The main function of a common mode choke in electronic circuits is to:
- Block high-frequency noise: It impedes common mode currents (noise that affects all conductors equally) while allowing differential mode currents (desired signals) to pass through.
- Protect equipment: Common mode chokes prevent EMI and RFI from interfering with the normal operation of electronic devices, especially in power-line communication systems.
- Filter power supply lines: They are often used to clean up noise in power supply lines, ensuring cleaner power delivery to sensitive electronic components.
Common mode chokes work by steering noise current in the same direction across both wires while simultaneously generating magnetic fields with two or more windings. When common mode noise enters the circuit, the flux generated by the signals enhances each other, creating high impedance and blocking the noise. However, for differential mode currents (desired signals), the magnetic fields cancel each other out, allowing these signals to pass through with minimal impedance.
Common mode chokes are widely used in various applications, including industrial equipment, telecommunications, computers, USB drives, and power cables. They are particularly effective in suppressing high-frequency noise while maintaining signal integrity in electronic circuits.
What is a common mode choke in an electronic circuit?
A common mode choke in an electronic circuit is a specialized magnetic component used to block high-frequency noise that appears identically on two or more conductors—typically power or signal lines. This type of noise is known as common mode noise.
The choke is made by winding two (or more) wires around a shared magnetic core in such a way that normal signals pass through unaffected, while unwanted noise is suppressed.
In electronic circuits, a common mode choke:
- Filters out EMI (electromagnetic interference) from power supplies, switching circuits, or nearby electronic devices.
- Allows differential signals (the useful current that flows in opposite directions) to pass freely.
- Protects sensitive components from electrical noise that could cause data errors or system instability.
At Unicreed, we engineer common mode chokes for precision performance in noise-sensitive applications,helping our customers maintain clean, stable signals in compact, high-density circuit designs.
What is common mode choke noise suppression?
Common mode choke noise suppression refers to the use of a common mode choke to filter out high-frequency noise that travels in the same direction across multiple conductors (common mode noise) without affecting the desired signals.
How Noise Suppression Works？
1.Differentiating Currents:
Common mode chokes distinguish between common mode currents (noise) and differential mode currents (desired signals).
- For differential mode currents, the magnetic flux generated by the opposing currents cancels out, allowing the signal to pass with minimal impedance.
- For common mode currents, the magnetic flux adds up, creating a high impedance that blocks or attenuates the noise.
2.High Impedance for Noise:
The choke presents a large inductance to common mode noise, effectively suppressing it by impeding its flow. This is achieved through the accumulation of magnetic flux caused by the common mode current.
3.Low Impedance for Signals:
Simultaneously, it allows differential mode signals to pass through with minimal resistance, ensuring signal integrity.
Applications
- Power Lines: Suppresses EMI from power supplies and prevents interference with other devices.
- Data Lines: Filters noise in USB cables, Ethernet lines, and other high-speed communication systems.
3.Industrial Equipment: Reduces noise from motors, inverters, and unshielded electronics
At Unicreed, I help customers apply common mode chokes in their designs to achieve stable, low-noise performance.
What is the purpose of a choke in electronics?
A choke in electronics is an inductor designed to block higher-frequency alternating currents (AC) while allowing direct current (DC) and lower-frequency AC to pass through a circuit. It achieves this by presenting high impedance to high-frequency signals due to its inductive reactance, while offering low resistance to DC and low-frequency AC.
Purpose of a Choke
- Noise Filtering: Chokes suppress high-frequency noise and interference in circuits, ensuring clean power delivery and stable operation of electronic devices.
- Energy Storage: They store energy in their magnetic field when current flows through them, which can be released back into the circuit when needed.
- Voltage Regulation: Chokes help regulate voltage levels in circuits, often working alongside capacitors for stable output.
- Signal Separation: They allow desired DC or low-frequency AC signals to pass while blocking unwanted high-frequency signals
Types of Chokes
- Audio Frequency Chokes: Designed to block audio and power line frequencies while allowing DC to pass. These are often used in older rectifier power supplies and motor controllers.
- Radio Frequency Chokes: Used to block radio frequencies while allowing audio signals or DC to pass. Commonly found in RF circuits.
Chokes are widely used in applications such as power supplies, audio systems, radio frequency circuits, and automotive electronics for filtering noise and ensuring reliable operation.
At Unicreed, we produce high-quality chokes customized for various electronic applications helping engineers build more reliable and noise-resistant systems.
How do common mode chokes achieve precision noise suppression?
Common mode chokes achieve precision noise suppression by targeting and filtering out common mode noise—interference that travels in the same direction on multiple conductors, such as power or signal lines—without affecting the useful signals flowing in opposite directions.
Here’s how they work:

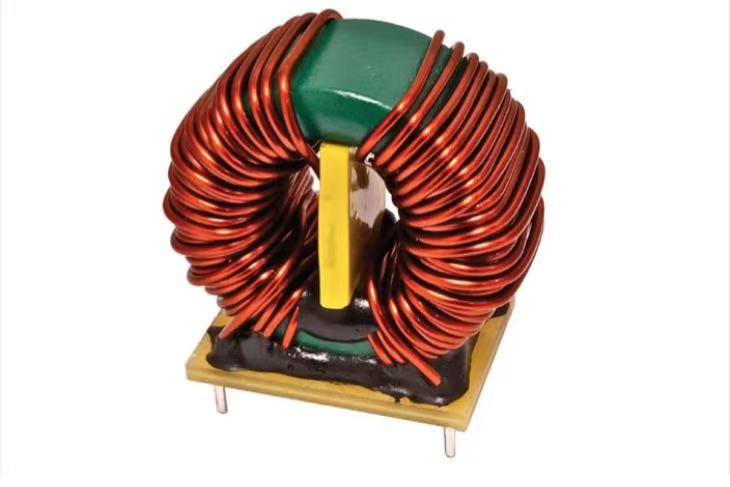

Inside a common mode choke, two or more windings are wound on a shared magnetic core. When a differential signal (your desired current) passes through, the magnetic fields from the windings cancel each other out. This means the choke has little to no effect on the signal.
But when common mode noise travels through both lines in the same direction, the magnetic fields combine instead of canceling. This creates high impedance that resists the noise and blocks it from passing through.
Design Features That Enhance Precision
- Ferrite Core: The ferrite material in the core ensures strong coupling between windings and high mutual inductance, which is critical for suppressing high-frequency noise
- Dual Windings: Identical windings around a shared core allow precise differentiation between common mode and differential mode currents
- Non-Saturation Design: The choke avoids core saturation even at high input currents, maintaining consistent performance across varying operational conditions
Applications
Common mode chokes are widely used in:
- Power supply lines to suppress EMI from motors and inverters.
- High-speed data lines such as USB and Ethernet cables.
- Audio systems and RF circuits for clean signal transmission
What applications are common mode chokes used in?
Common mode chokes are versatile components used in various industries to suppress electromagnetic interference (EMI) and ensure reliable operation of electronic systems. Below are examples of their applications, highlighting their importance in real-world scenarios:
Applications in Real-World Scenarios
1.Medical Equipment
Common mode chokes are critical in medical devices where precision and reliability are essential.
- Patient Monitoring Systems: These systems require uninterrupted and accurate signal transmission to monitor vital signs. Common mode chokes suppress EMI from power supplies and nearby devices, ensuring clean signals for reliable patient data
- Imaging Equipment: Devices like MRI and CT scanners rely on common mode chokes to filter noise that could degrade image quality, ensuring precise diagnostics
2.Industrial Control Systems
Industrial environments generate significant EMI due to high-power equipment, making common mode chokes indispensable.
- Programmable Logic Controllers (PLCs): Common mode chokes protect PLCs from noise caused by motors and inverters, ensuring stable operation in automated processes
- Variable Frequency Drives (VFDs): They suppress EMI generated by VFDs, improving motor control performance and preventing interference with other systems
3.Renewable Energy Systems
Renewable energy setups involve high-frequency switching devices that generate EMI, which common mode chokes effectively mitigate.
- Solar Inverters: These devices convert DC from solar panels into AC for grid use. Common mode chokes filter out noise caused by switching operations, ensuring efficient power conversion and compliance with EMI standards
- Wind Turbines: In wind energy systems, common mode chokes protect communication lines and control systems from EMI generated by high-power generators
4.Smart Electric Meters and Water Meters
Smart meters rely on accurate data transmission over power lines or wireless networks, which can be disrupted by EMI.
- Electric Meters: Common mode chokes suppress noise from power lines to ensure precise electricity consumption measurements and reliable communication with utility companies
- Water Meters: They prevent interference from nearby electrical systems, allowing accurate flow measurements and uninterrupted data transmission
Additional Applications
Common mode chokes are also widely used in:
- Automotive systems (e.g., CAN buses for EMI suppression).
- Consumer electronics (e.g., USB drives, LCD panels).
- Telecommunication systems (e.g., Ethernet lines)
In summary, common mode chokes are indispensable components across industries, providing effective noise suppression to maintain signal integrity and ensure the reliable operation of electronic systems.
Why Choose Unicreed for Custom EMI Solutions
Have you ever wondered why some EMI suppression solutions fall short when it comes to long-term stability and performance? In today’s complex electronic environments, especially in industries like medical, energy, and industrial automation, choosing the right partner for EMI control can make all the difference.
This is why many engineers and procurement teams trust Unicreed.
I bring over 15 years of experience in designing transformers and chokes for noise-sensitive applications. Our products are built with precision, featuring low magnetic noise and vacuum encapsulation to ensure both performance and safety. We don’t believe in one-size-fits-all. That’s why we offer full customization—from winding structure to voltage range and mounting options—so our components integrate seamlessly into your system.
All of our solutions meet international certifications like UL, CE, and VDE, giving you peace of mind in terms of compliance. We also engineer our transformers to handle high dielectric stress, and their moisture- and vibration-resistant designs perform reliably even in harsh industrial or outdoor conditions.
Energy efficiency is another reason customers choose us. Our designs minimize energy loss, supporting both system performance and sustainability. With our rapid prototyping capabilities, I can help you move from concept to sample in just a few days. And you won’t be alone—I’ll support you at every step, from design to delivery and beyond.
When you choose Unicreed, you’re not just choosing a supplier—you’re choosing a partner who understands EMI challenges and solves them with care, speed, and precision.
Conclusion
In brief, I’ve seen firsthand how effective common mode chokes are in delivering precise and reliable noise suppression in all types of electronic circuits. Whether it’s reducing EMI in medical equipment, stabilizing signals in industrial systems, or protecting data integrity in smart meters, these components play a vital role in ensuring consistent performance.
If you’re an engineer working on a sensitive application or a purchasing manager looking for dependable magnetic components, I strongly encourage you to consider our Unicreed solutions. We don’t just offer standard parts—we customize and manufacture with your exact needs in mind, all backed by years of experience and global certifications.
If you need samples, drawings, or a tailored quote for your next project, I’m here to help. Just reach out to me directly at sales@unicreed-transformer.com or visit www.unicreed-transformer.com. I look forward to working with you.
