From No-Load to Full-Load: How Transformer Winding Methods Affect Voltage Regulation

When engineers test a transformer on the bench, they often notice something confusing. The secondary voltage looks perfect at no load, but once the real load is connected, the voltage suddenly drops. In my experience working with OEM customers, this situation raises many design questions. Engineers start wondering whether the transformer is undersized, incorrectly specified, or even defective.

The real issue, however, is often hidden inside the transformer itself. The winding method can significantly influence how the transformer behaves from no load to full load. Different winding structures affect leakage inductance, copper resistance, and magnetic coupling, which directly impact voltage regulation.

In our factory, I have seen many cases where two transformers with the same VA rating perform very differently under load simply because of their winding layout. In this article, I will explain how winding methods influence voltage regulation and what engineers should consider when selecting or designing a transformer.

What Is Transformer Voltage Regulation?

Before discussing how winding methods influence voltage regulation, we first need to understand what voltage regulation actually means in a transformer and why engineers care about it. In transformer design, the difference between no-load voltage and full-load voltage is a key indicator of how stable the output will be during real operation. In my experience working with low-frequency transformers, many performance issues reported by OEM customers, such as unexpected voltage drop, unstable control circuits, or poor DC output after rectification, are closely related to voltage regulation.

1.Definition of Voltage Regulation in Transformers

Transformer voltage regulation describes how much the secondary voltage changes when the load increases from no-load to rated load.

In simple terms, it measures the transformer’s ability to maintain a stable output voltage when current is drawn by the load.

The typical formula used in engineering is:

Voltage Regulation (%) = (V_no-load − V_full-load) / V_full-load × 10

Where:

• V_no-load = secondary voltage when the transformer has no load connected
• V_full-load = secondary voltage when the transformer delivers its rated current

In our factory testing process, we always measure both conditions. During no-load testing, the output voltage is usually higher because there is almost no current flowing through the secondary winding. Once the rated load is connected, the voltage drops due to copper resistance and leakage inductance inside the windings.

2.Why Voltage Regulation Matters in Real Applications

Voltage regulation becomes especially important when the transformer is used in industrial electronics, control systems, and power supplies.

In my experience, many engineers initially focus only on the rated voltage and VA power, but the voltage drop under load is often the real challenge in the final product.

For example:

• Industrial control boards may require stable 24 V AC. If the transformer has poor regulation, the voltage may drop to 20 V under load, which can cause relays or PLC inputs to malfunction.
• Rectifier and capacitor power supplies are even more sensitive. The transformer must handle high peak currents, which can significantly increase voltage drop.
• Measurement and sensing circuits may experience instability if the transformer output fluctuates too much.

In our factory, when we build transformers for OEM equipment, one of the first things we check is how the voltage behaves under real load conditions, not just at no-load.

A transformer with good voltage regulation helps ensure:

• stable output voltage
• predictable circuit behavior
• improved reliability of the end produc

3.Typical Voltage Regulation Range in Low-Frequency Transformers

For traditional 50/60 Hz laminated transformers, voltage regulation varies depending on the design, winding structure, and core size.

Based on what we typically see in production, the common ranges are:

In our production line, transformers designed for industrial control cabinets usually target 5% to 10% regulation. If the application uses a rectifier and large filter capacitor, we sometimes design the transformer with a slightly higher no-load voltage to compensate for the expected drop under load.

Another important point is that voltage regulation is affected not only by the winding method, but also by:

• wire diameter and copper resistance
• leakage inductance between primary and secondary
• core size and magnetic flux density
• load characteristics

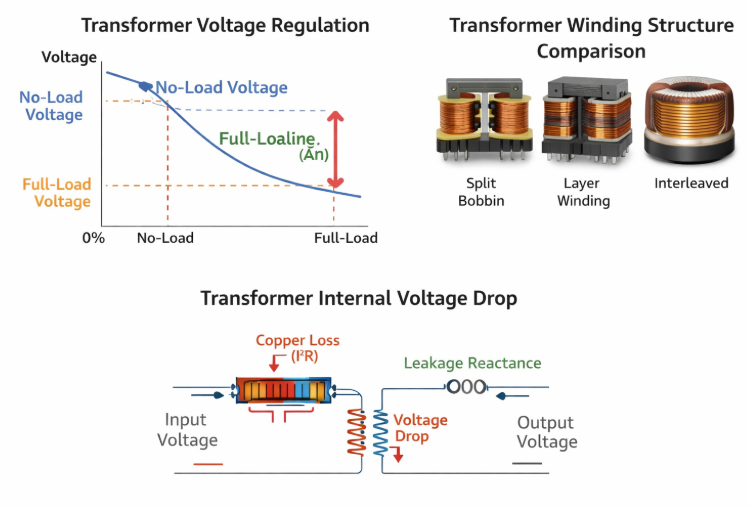

What Happens Between No-Load and Full-Load Conditions

Before analyzing how winding methods influence voltage regulation, it is helpful to understand what actually happens inside a transformer as the load changes. A transformer does not behave the same way under no-load and full-load conditions. The electrical parameters inside the windings and magnetic core change as current begins to flow through the secondary circuit. In my experience working with OEM power supply designs, many engineers first notice voltage regulation issues during this transition from no-load to full-load. Understanding these two operating states makes it much easier to explain why output voltage drops and why winding structure plays an important role.

1.No-Load Condition

Transformer Operating With Minimal or Zero Load

A transformer is considered to be in no-load condition when the primary winding is connected to the input voltage but the secondary winding is either completely open or only connected to a very small load.

Under this condition, almost no current flows in the secondary winding, so the transformer is not delivering real power to an external circuit.

In our factory testing process, when we measure the secondary voltage during initial electrical checks, we normally measure it at no-load. Engineers often notice that this voltage is slightly higher than the rated output voltage, which is completely normal.

This higher value occurs because there is no voltage drop caused by load current.

2.Full-Load Condition

Increased Current Flow in Secondary Winding

When a load is connected to the secondary winding, the transformer enters the loaded operating condition. As the load draws current, the secondary winding begins supplying electrical power.

This secondary current creates a magnetic field that opposes the primary magnetic field. To maintain the required magnetic flux in the core, the primary winding automatically draws more current from the input supply.

This interaction between primary and secondary current is part of the normal transformer energy transfer process.

In real applications, the current drawn by the load may vary depending on the equipment connected to the transformer. For example, motors, relays, electronic circuits, or rectifier power supplies may all draw different current profiles.

Voltage Drop Caused by Winding Resistance and Leakage Reactance

As the secondary current increases, voltage drops begin to appear inside the transformer windings.

Two main electrical factors cause this effect.

Winding resistance
Copper wire used in the windings has electrical resistance. When current flows through the winding, the resistance causes a voltage drop according to Ohm’s law.

Leakage reactance
Not all magnetic flux generated by the primary winding perfectly links with the secondary winding. Some flux escapes the magnetic coupling path, creating leakage inductance. This leakage inductance produces an additional voltage drop when current flows.

In my experience designing transformers for industrial control equipment, the combined effect of winding resistance and leakage inductance is the main reason the secondary voltage decreases as the load increases.

This is exactly where winding structure becomes very important. The physical layout of the primary and secondary windings strongly affects leakage inductance and coupling efficiency, which directly impacts how much voltage drop occurs between no-load and full-load conditions.

Understanding this behavior helps engineers predict and control transformer voltage regulation during the design stage.

Even when no load is connected, the transformer still consumes a small amount of current known as the magnetizing current.

This current flows in the primary winding to establish the alternating magnetic flux inside the core.

At this stage, the transformer mainly experiences two types of losses:

• Core loss (iron loss)
  • This includes hysteresis loss and eddy current loss in the laminated core material.

• Magnetizing current
  • A small current required to maintain the magnetic field.

In our production line, this is the stage where we measure no-load current and no-load losses, because they are useful indicators of core material quality and winding design.

Since the secondary current is almost zero, the voltage drop across the secondary winding resistance is also nearly zero. As a result, the output voltage measured at no-load is usually the highest value the transformer will produce.

Why Winding Method Matters for Voltage Regulation

We look at specific winding structures, it is important to understand why the winding method has such a strong influence on transformer voltage regulation. In many transformer projects we handle in our factory, the core size and VA rating may remain the same, but the voltage regulation can change noticeably simply because the winding layout is different. In my experience, two transformers with identical electrical ratings can behave very differently under load depending on how the primary and secondary windings are arranged. The key factors behind this are leakage inductance and magnetic coupling efficiency.

1.Relationship Between Winding Layout and Leakage Inductance

One of the most important reasons winding methods affect voltage regulation is their influence on leakage inductance.

In an ideal transformer, all magnetic flux generated by the primary winding would pass through the core and fully link with the secondary winding. In reality, a portion of the magnetic flux does not couple perfectly between the windings. This unused magnetic flux is called leakage flux, and it creates leakage inductance in the transformer.

The physical arrangement of the windings strongly determines how much leakage flux is generated.

For example, if the primary winding and secondary winding are placed far apart on the bobbin, the magnetic coupling becomes weaker. In this case, more leakage flux appears between the windings. As a result, the transformer shows higher leakage inductance.

In our production line, we often see this situation in split bobbin designs where the primary and secondary are intentionally separated to improve safety isolation. While this structure improves insulation distance, it also increases leakage inductance.

Higher leakage inductance leads to greater voltage drop when current flows through the secondary winding, which directly worsens voltage regulation under load.

On the other hand, when the windings are arranged closer together or interleaved, the magnetic coupling improves and leakage inductance becomes smaller. This allows the transformer to maintain a more stable output voltage when the load increases.

2.Primary and Secondary Coupling Efficiency

Another key factor related to winding methods is magnetic coupling efficiency between the primary and secondary windings.

Magnetic coupling describes how effectively the magnetic field created by the primary winding transfers energy to the secondary winding through the core.

In transformer design, we usually describe this as tight coupling or loose coupling.

Tight coupling occurs when the primary and secondary windings are closely positioned or partially interleaved. This arrangement allows most of the magnetic flux generated by the primary to link with the secondary winding. As a result, the transformer transfers energy more efficiently and the output voltage remains more stable when the load current increases.

In my experience, transformers designed with interleaved or layered windings usually achieve better voltage regulation because the magnetic path between the windings is shorter and the leakage flux is minimized.

Loose coupling, on the other hand, occurs when the primary and secondary windings are physically separated or wound on different sections of the bobbin. In this case, a larger portion of the magnetic flux does not link the two windings effectively.

This weaker coupling reduces energy transfer efficiency and increases the voltage drop under load.

In real manufacturing projects, we often need to balance these factors. For example, safety standards such as EN61558 or UL isolation requirements sometimes require larger creepage distances between primary and secondary windings. This can slightly increase leakage inductance, so the winding structure must be carefully optimized to maintain acceptable voltage regulation.

Because of these trade-offs, the choice of winding method becomes a critical design decision when engineers want to achieve both electrical safety and stable output voltage.

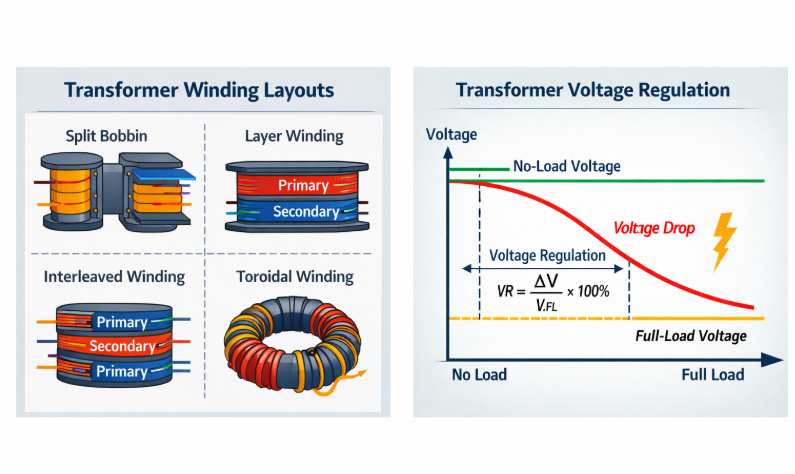

How Transformer Winding Method Directly Affect Voltage Regulation

Selecting a transformer for a real application, engineers often focus on parameters such as input voltage, output voltage, and VA rating. However, in my experience working with transformer production and testing, the winding method is one of the most important factors that determines how stable the output voltage will be when the load changes. Two transformers with the same core size and rating can show very different voltage regulation simply because their winding structures are different. The winding arrangement directly affects leakage inductance, magnetic coupling, and internal impedance, which ultimately determines how much the voltage drops from no-load to full-load.

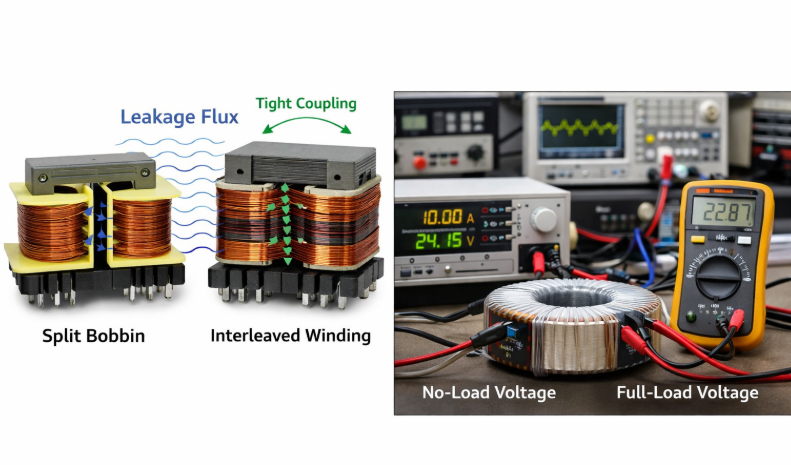

1.Split Bobbin Winding (High Isolation but Higher Voltage Drop)

The split bobbin winding method places the primary winding and secondary winding on separate sections of the bobbin.

This structure is commonly used in safety isolation transformers because it naturally increases the creepage distance and insulation separation between the primary and secondary windings. In many industrial designs that must comply with safety standards, split bobbin construction is often selected for this reason.

However, this physical separation also increases the distance between the windings, which reduces magnetic coupling. As a result, more magnetic flux fails to link both windings and becomes leakage flux.

In our factory, when we test transformers built with split bobbin structures, we often observe higher leakage inductance compared with other winding methods. This higher leakage inductance increases the internal impedance of the transformer and causes a larger voltage drop when the load current increases.

For this reason, split bobbin transformers typically show higher voltage regulation values, meaning the output voltage changes more noticeably from no-load to full-load.

2.Layer Winding (Balanced Performance)

The layer winding method is one of the most common techniques used in traditional EI laminated transformers.

In this structure, the primary winding is wound in layers on the bobbin, followed by insulation tape, and then the secondary winding is wound on top. This design places the windings closer together than in split bobbin construction, which improves magnetic coupling.

In our production line, most standard EI power transformers use this layer winding approach because it provides a good balance between electrical performance, insulation safety, and manufacturing efficiency.

Compared with split bobbin designs, layer winding reduces leakage inductance and improves coupling between the primary and secondary windings. As a result, the voltage drop under load is usually moderate, and the voltage regulation performance is more stable.

For many applications such as control circuits, industrial electronics, and small power supplies, layer winding provides a practical compromise between safety and electrical performance.

3.Interleaved Winding (Best Voltage Regulation)

The interleaved winding method is often used when engineers want to achieve better voltage regulation and lower leakage inductance.

In this structure, the primary and secondary windings are alternated in multiple sections. For example, part of the primary winding is placed first, then part of the secondary winding, followed by another primary section, and so on.

By alternating the windings in this way, the distance between the primary and secondary sections becomes much smaller. This significantly improves magnetic coupling and reduces leakage flux.

In my experience, transformers designed with interleaved windings usually show excellent voltage regulation, especially in applications where the load current changes frequently.

However, this structure requires more complex winding processes and careful insulation design, which can increase manufacturing time and cost. It is therefore typically used in transformers where performance is more critical than production simplicity.

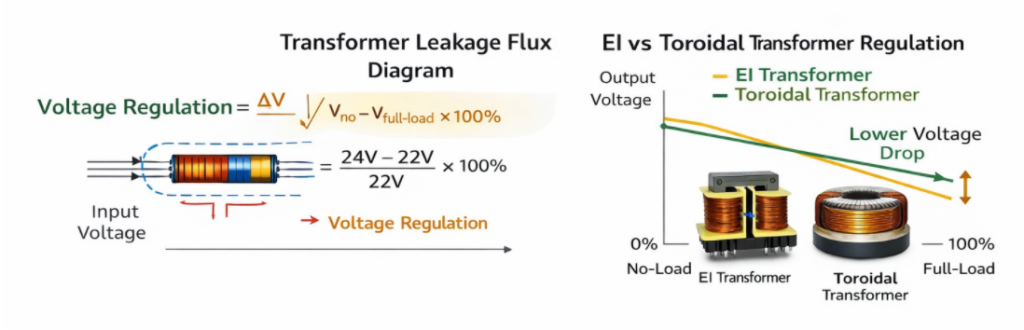

4.Toroidal Continuous Winding

Toroidal transformers use a completely different core geometry compared with laminated EI transformers. The windings are wrapped continuously around a ring-shaped magnetic core.

Because the windings follow the entire circumference of the core, the magnetic path is highly uniform and the coupling between primary and secondary windings is naturally very tight.

In our experience supplying toroidal transformers for higher power applications, one advantage that engineers often notice immediately is their excellent voltage regulation.

The tight magnetic coupling significantly reduces leakage inductance, which helps maintain a stable output voltage even when the load current increases.

This is why toroidal transformers are commonly used in applications where low voltage drop, high efficiency, and low magnetic noise are important.

Overall, the winding method is a critical factor in transformer design. By choosing the appropriate winding structure, engineers can significantly influence how the transformer performs as it moves from no-load to full-load conditions, and ultimately achieve better voltage regulation in real applications.

How Transformer Designers Optimize Winding Structure To Improve Voltage Regulation

When transformer enters mass production, designers must carefully optimize the winding structure to ensure stable voltage from no-load to full-load. In my experience working with transformer manufacturing, voltage regulation is rarely determined by a single factor. Instead, it is the result of multiple design decisions including winding arrangement, copper utilization, thermal limits, and real load behavior. In our factory, when we develop transformers for OEM customers, we usually evaluate several winding structures during the design stage and verify them through prototype testing. The goal is to achieve a good balance between low leakage inductance, acceptable temperature rise, and reliable long-term performance.

1.Reducing Leakage Inductance Through Winding Layout

One of the first things transformer designers focus on is minimizing leakage inductance, since it directly contributes to voltage drop under load.

The winding layout plays a critical role here. When the primary and secondary windings are placed closer together, the magnetic coupling improves and leakage flux decreases. In practical transformer design, engineers often use techniques such as layered windings or partial interleaving to reduce the distance between the windings.

In our factory, when voltage regulation requirements are strict, we sometimes divide the primary winding into two sections and place the secondary winding between them. This structure improves magnetic coupling and reduces leakage inductance, which helps the transformer maintain a more stable output voltage when the load current increases.

However, the winding layout must also respect insulation requirements and safety standards, so the design must carefully balance performance and electrical isolation.

2.Balancing Copper Fill, Temperature Rise, and Efficiency

Another important consideration in winding optimization is the copper fill factor and its impact on temperature rise.

Thicker copper wire reduces winding resistance, which helps reduce voltage drop under load. However, increasing wire diameter also increases the copper fill inside the bobbin window. If the copper fill becomes too high, it may limit airflow and increase heat accumulation.

In my experience, transformer design is always a compromise between low resistance and acceptable thermal performance. A design with extremely low winding resistance might improve voltage regulation slightly, but if the temperature rise becomes too high, the transformer’s reliability and insulation life may be affected.

In our production projects, we typically evaluate:

• winding resistance and copper loss
• expected temperature rise at rated load
• efficiency under normal operating conditions

By optimizing these factors together, we can achieve stable voltage regulation without exceeding thermal limits.

3.Importance of Prototyping and Load Testing

Even with careful design calculations, transformer performance must always be verified through prototype testing.

In our factory development process, we usually produce a small batch of samples before mass production. These prototypes allow engineers to measure important parameters such as:

• no-load voltage
• full-load voltage
• temperature rise
• leakage inductance
• efficiency under different load levels

These measurements help confirm whether the winding structure performs as expected. In some cases, we may adjust the winding arrangement or wire size after the first prototype test to improve voltage regulation.

4.Why Real Load Testing Is Required to Verify Voltage Regulation

One lesson I have learned from many transformer projects is that laboratory calculations alone cannot fully predict real operating behavior.

Voltage regulation depends not only on the transformer design but also on the actual load characteristics. For example, resistive loads behave very differently from loads that include rectifiers and large filter capacitors.

In many power supply applications, the load current is not purely sinusoidal. Instead, the transformer may experience short peak currents during each AC cycle. These peak currents increase copper losses and can cause larger voltage drops than expected.

For this reason, in our factory we always recommend testing the transformer with the real load conditions whenever possible. Only through actual load testing can engineers accurately verify whether the voltage regulation meets the requirements of the final equipment.

How Transformer Manufacturers Test Voltage Regulation

In real manufacturing environments, voltage regulation is not just a theoretical value calculated during design it must be confirmed through practical electrical testing. In our factory, every transformer design goes through several verification steps, including no-load testing, full-load electrical testing, and strict production quality control procedures. These tests ensure that the transformer can maintain stable output voltage when the load changes from no-load to full-load conditions.

1.No-Load Voltage Measurement

The first step in evaluating transformer voltage regulation is measuring the no-load secondary voltage.

In this test, the transformer primary winding is supplied with the rated input voltage and frequency, while the secondary winding remains open-circuited or connected to a very light measurement load. Since almost no current flows through the secondary winding, there is minimal voltage drop caused by winding resistance.

In our factory test process, this measurement allows us to verify several important parameters:

• Whether the turns ratio between primary and secondary windings is correct
• Whether the secondary voltage falls within the expected tolerance range
• Whether the core and winding design operate correctly under rated input conditions

In most cases, the no-load voltage is slightly higher than the rated output voltage, which is normal because there is no load current causing internal voltage drop.

This measurement provides the baseline voltage reference for calculating voltage regulation.

2.Full-Load Electrical Testing

After confirming the no-load voltage, the next step is full-load electrical testing.

During this test, a controlled load is connected to the transformer secondary so that the transformer delivers its rated output current. The secondary voltage is then measured again while the transformer operates under full-load conditions.

In our production line, we typically use precision resistive loads or programmable electronic loads to simulate the rated operating conditions. This allows us to observe:

• The secondary voltage under full-load
• The difference between no-load and full-load voltage
• Whether the transformer meets the required voltage regulation specification

For example, if the no-load voltage is measured at 12.6 V and the full-load voltage drops to 12.0 V, the difference reflects the internal voltage drop caused by winding resistance and leakage reactance.

In my experience, this test is critical because it reveals how the transformer behaves when real current flows through the windings, which cannot be fully predicted by design calculations alone.

3.Production Quality Control Procedures

In addition to prototype testing, transformer manufacturers must implement consistent quality control procedures during mass production to ensure that every unit performs according to specification.

In our factory, each transformer passes through several electrical inspection stages during production.

Typical procedures include:

100% Electrical Parameter Testing
Every transformer is tested on automated equipment to verify key parameters such as:

• input current
• output voltage
• winding continuity
• voltage ratio

Hi-Pot (Dielectric Strength) Testing
A high-voltage insulation test is performed to confirm that the insulation between primary and secondary windings meets safety requirements.

Finished Product Functional Testing
Final tests ensure the transformer operates correctly under normal electrical conditions before shipment.

OQC Sampling Inspection
In the final stage, the quality control team performs Outgoing Quality Control (OQC) sampling inspections to verify electrical parameters, appearance, and packaging consistency.

In our production system, all electrical specifications are tested online and every finished transformer is inspected before shipment, ensuring that the products delivered to customers maintain consistent performance and safety standards.

How To Choosing the Right Transformer Design for Your Application

Selecting a transformer for a new project, engineers often focus on basic specifications such as input voltage, output voltage, and VA rating. However, in my experience working with OEM customers, these parameters alone are not enough to ensure stable performance. The way a transformer behaves from no-load to full-load is strongly influenced by the load characteristics, environmental conditions, and the winding design itself. In our factory, many transformer designs need adjustments after the first prototype stage because the real application conditions are different from the initial assumptions. For this reason, choosing the right transformer design requires a more systematic evaluation.

1.Evaluate Load Characteristics

One of the first steps when selecting a transformer is understanding the type of load the transformer will supply.

Some applications operate with continuous and relatively stable loads, such as industrial control circuits or signal equipment. In these cases, the load current does not vary significantly during operation, and the transformer can usually be designed with standard voltage regulation targets.

However, many practical applications involve variable or dynamic loads. For example, equipment that includes relays, motors, or switching electronics may draw fluctuating currents. In these situations, the transformer must handle sudden current changes without causing excessive voltage drop.

Another common case we see in our factory is when the transformer feeds a rectifier and filter capacitor to produce DC power. This type of load draws short peak currents instead of smooth sinusoidal current, which can increase copper losses and cause larger voltage drops.

Because of this, it is important to evaluate the real load behavior before finalizing the transformer design. This helps ensure the transformer maintains stable output voltage under actual operating conditions.

2.Consider Environmental and Safety Requirements

Environmental conditions and safety standards also play an important role in transformer selection.

Transformers operating in industrial environments may face higher ambient temperatures, limited ventilation, or continuous operation for long periods. In these cases, the designer must carefully select the appropriate insulation class and thermal limits.

For example, many low-frequency transformers are designed using Class B insulation systems with a maximum temperature of 130°C. This allows the transformer to operate safely while maintaining acceptable temperature rise during full-load operation.

Safety standards must also be considered, especially when the transformer is used in equipment that will be exported to different markets. Depending on the application, transformers may need to comply with standards such as EN61558 or related UL safety requirements, which define insulation structure, creepage distance, and dielectric strength.

In my experience, these safety requirements sometimes influence the winding structure itself. For example, increased insulation spacing between primary and secondary windings can slightly increase leakage inductance, which may affect voltage regulation. Designers must therefore balance safety, electrical performance, and thermal behavior.

3.Work with Custom Transformer Manufacturers

For many OEM applications, the best solution is often to work with a custom transformer manufacturer that can optimize the design for the specific application.

At Unicreed, we have been manufacturing transformers since 2008, supporting customers with various designs including encapsulated transformers, EI transformers, toroidal transformers, and high-frequency magnetics.

In our experience, customized transformer design offers several advantages.

First, the winding structure can be optimized to achieve better voltage regulation and lower leakage inductance for the intended load conditions.

Second, the transformer can be designed to meet the exact electrical parameters and safety requirements of the application, rather than forcing the system to adapt to a standard product.

Finally, custom development allows engineers to verify performance through prototype testing before mass production. In our production process, electrical parameters are tested during manufacturing and every transformer undergoes functional verification to ensure consistent quality.

Real Unicreed Manufacturing Experience: What We See in Production

Discussing theoretical design methods, it is also useful to look at what actually happens in real manufacturing and customer projects. In my experience working with transformer production at Unicreed, many voltage regulation problems do not appear during initial specification discussions. They usually appear later during prototype testing or when the transformer is installed in the final equipment. Over the years, we have seen similar issues across different projects, especially when the transformer moves from no-load testing in the lab to full-load operation in real applications. These practical cases help explain why winding design and correct parameter estimation are so important.

1.Common Voltage Regulation Problems in Transformer Projects

One of the most common issues we encounter is that the output voltage drops too much when the transformer is under load.

During early testing, the transformer may appear to meet the voltage requirement because the no-load voltage looks correct. However, once the equipment begins operating and the load current increases, the secondary voltage may fall below the required level.

For example, an industrial control circuit may require 24 V AC, but when the transformer operates at full load the output may drop to 20 V or lower. This can lead to unstable relays, malfunctioning control boards, or unexpected system behavior.

Another situation we frequently see is that the transformer passes the no-load electrical test but fails when installed in the real equipment. In these cases, the transformer itself is not necessarily defective. Instead, the design assumptions may not fully match the actual load conditions of the final product.

In my experience, this is especially common in power supplies that include rectifiers and large filter capacitors, where the peak current drawn from the transformer is much higher than the average current.

2.Typical Causes We Find During Production Testing

When these voltage regulation issues occur, our engineering team usually reviews the design and production test data to identify the root cause. Several common causes appear repeatedly in transformer projects.

Incorrect VA estimation
Many designs initially estimate transformer power using the simple formula of voltage multiplied by current. However, when the transformer supplies rectifier circuits or dynamic loads, the required VA capacity may be significantly higher than the calculated value. If the transformer is undersized, the voltage drop under load becomes much larger than expected.

Wrong winding structure
In some cases, the winding arrangement may not be optimized for the required voltage regulation. For example, if the primary and secondary windings are too far apart, the magnetic coupling becomes weaker and leakage inductance increases.

Excessive leakage inductance
High leakage inductance increases the internal impedance of the transformer. When load current increases, the voltage drop caused by this impedance becomes more noticeable. This is why winding layout and magnetic coupling are critical factors in transformer design.

3.How We Test Voltage Regulation in Production

To prevent these issues, transformer manufacturers must verify electrical performance through structured production testing.

In our factory, voltage regulation is evaluated through several standard tests during development and production.

No-load voltage measurement
First, we measure the secondary voltage with the transformer connected to the rated input voltage but without any load connected. This establishes the reference voltage for later comparison.

Full-load electrical test
Next, we connect a load that draws the rated current from the transformer. During this test, we measure the output voltage and calculate how much it drops compared with the no-load value.

Temperature rise verification
Because copper resistance increases with temperature, we also monitor the transformer during extended operation to verify that the temperature rise remains within the allowed limits.

At Unicreed, we perform comprehensive electrical testing during production, including hi-pot testing, functional verification, and electrical parameter checks before shipment. According to our manufacturing procedures, electrical parameters are tested throughout production to ensure consistent quality and safety performance.

From our experience, these production tests are essential to confirm that the transformer performs reliably when it moves from no-load conditions during testing to full-load operation in the customer’s equipment.

Conclusion

Transformer output voltage stability is not determined only by the core size or VA rating. In many cases, the wiring layout and winding structure play a decisive role in how the transformer behaves from no-load to full-load conditions. As we have discussed, the arrangement of the primary and secondary windings directly affects magnetic coupling, leakage inductance, and internal resistance, which ultimately determines how much the output voltage drops under load.

In my experience working with transformer manufacturing, many voltage regulation issues originate from improper winding design or inaccurate assumptions about the load conditions. A transformer that performs well during no-load testing may still experience significant voltage drop in real equipment if the winding layout is not optimized for the application.

At Unicreed, we have been designing and manufacturing transformers for OEM applications since 2008. Our engineering team supports customers with custom winding design, prototype validation, and production testing to ensure stable voltage performance under real operating conditions. In our production line, every transformer undergoes electrical parameter testing, hi-pot testing, and functional verification before shipment, helping ensure consistent quality and reliability.

If you are designing a new product or experiencing voltage drop issues in your transformer application, our team is ready to help.

Related Blog:

1. How to Improve Leakage Inductance Performance in High-Frequency Transformers?
2. Custom Toroidal Transformers: How to Design for Specific Voltage Requirements?
3. Everything You Need to Know About Control Transformers
4. 5 Ways Unicreed Customizes Transformers for Your System
5. How to Improve HI-POT Performance Poor in High-Frequency Transformers?
