Copper vs Aluminum How to Tell What Your Toroidal Transformer is Made Of？

Have you ever wondered what kind of wire is inside your toroidal transformer? You are not alone. The type of winding, whether copper or aluminum, can make a big difference in performance, efficiency, and even how long your equipment lasts. Many people do not realize that copper and aluminum each have unique properties that affect conductivity, heat dissipation, and cost. Choosing the wrong one for your application could lead to unnecessary energy loss or premature failure.

I have seen this confusion countless times and I know how frustrating it can be not knowing what is inside your transformer. That is why in this article I will show you simple ways to identify whether your toroidal transformer is made of copper or aluminum wire. With these tips you will feel confident making smarter decisions about your transformers whether you are buying, repairing, or upgrading.

Why Is the Winding Material Important in Toroidal Transformers?

Have you ever wondered why the material used for the windings in toroidal transformers matters so much? Understanding this can help ensure you get the best performance and longevity from your transformers.

Let’s explore why the winding material is a critical factor in toroidal transformer design and operation.

The winding material, commonly copper or aluminum, greatly influences key transformer characteristics:

1. Electrical Efficiency: Copper has higher electrical conductivity than aluminum, which means copper windings reduce resistive losses and improve transformer efficiency. This helps in maintaining low heat generation and better energy transfer.
2. Size and Weight: Copper’s superior conductivity allows for smaller, more compact coils, while aluminum windings require larger cross-sectional areas to carry the same current, often making the transformer bigger and lighter.
3. Mechanical Strength and Durability: Copper is more robust mechanically, making copper-wound transformers generally more reliable and resistant to vibration or mechanical stress.
4. Cost Considerations: Aluminum is less expensive and lighter, which can reduce upfront costs and overall transformer weight, but it may compromise some efficiency and durability compared to copper.
5. Thermal Performance: Copper winds dissipate heat more effectively, contributing to cooler operation and longer lifespan.
6. Impact on Winding Techniques: Proper winding technique with the selected material is essential to reduce leakage inductance and avoid insulation damage, directly affecting reliability and noise levels in operation.

How to Identify Copper vs Aluminum in Your Toroidal Transformer

When dealing with toroidal transformers, identifying whether the windings are made of copper or aluminum can be important for assessing performance, maintenance, or replacement decisions. Since copper and aluminum have different electrical and physical properties, knowing which material your transformer uses helps optimize usage and handle repairs properly. Various distinguishing methods exist that allow you to recognize the winding material without extensive dismantling or testing.

To identify copper vs aluminum in your toroidal transformer, you can use the following practical methods:

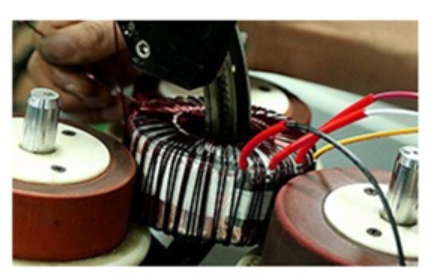

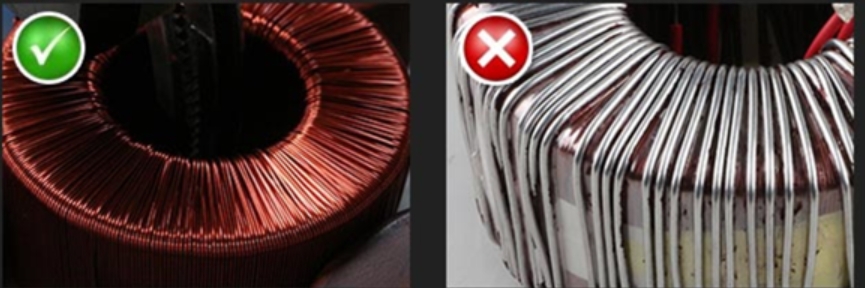

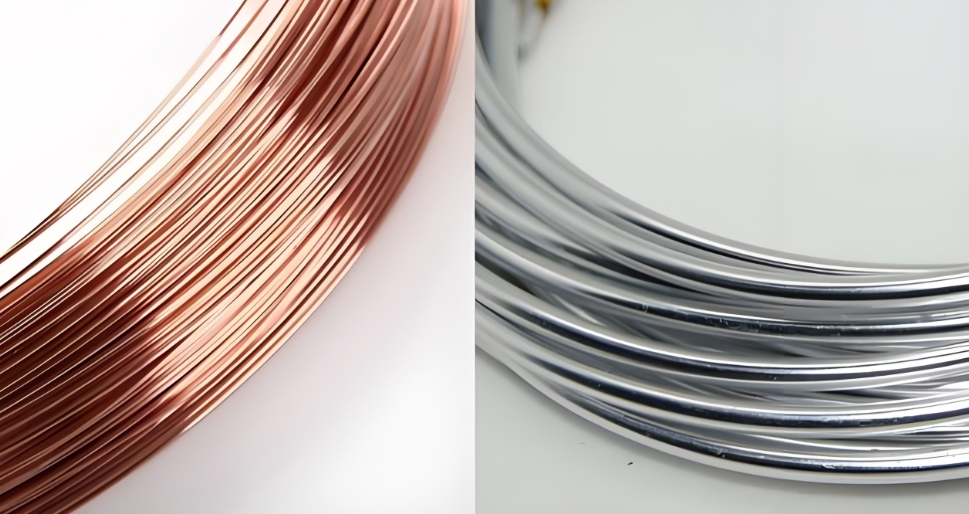

• Visual Color Check: Carefully make a small cut or expose a section of the winding wire. Copper windings are a yellowish-brown or reddish-brown color, while aluminum wires appear silver or white inside the cut section.
• Weight Comparison: Copper is significantly denser and heavier than aluminum. If you have two transformers of similar size, the one with copper windings will be noticeably heavier than the aluminum one.
• Physical Dimensions of Windings: Aluminum windings typically have a larger cross-sectional area, so the windings are thinner but more voluminous compared to the more compact copper windings.
• Check the Label or Markings: Some transformers may have manufacturer labels indicating the winding material, with abbreviations such as ‘Cu’ for copper or ‘Al’ for aluminum.
• Magnetic or Conductivity Testing: With specialized tools, testing the electrical resistance or magnetic properties can also distinguish copper from aluminum, as copper has higher conductivity and different magnetic characteristics.

In essence, the easiest and most common approach is the color inspection and weight assessment, which generally provide clear clues about the winding material of toroidal transformers without sophisticated instruments. Copper windings offer higher conductivity and strength, while aluminum windings provide lighter weight and lower cost, but with slightly lower conductivity.

Pros and Cons of Copper and Aluminum Windings in Toroidal Transformers

Understanding how to identify copper versus aluminum windings is a key step before evaluating their relative advantages and disadvantages in toroidal transformers. Once the winding material is known, it’s important to consider the performance, cost, and reliability aspects to determine which conductor best suits your specific transformer application. This foundation allows a clearer comparison of the pros and cons of copper and aluminum windings.

Here are the pros and cons of copper and aluminum windings in toroidal transformers:

Does copper wire perform better than aluminum in toroidal transformers?

Having examined the characteristics and cost factors of copper and aluminum windings, the natural question arises: Does copper wire perform better than aluminum in toroidal transformers? This is essential to clarify because performance can be viewed from multiple perspectives, including efficiency, reliability, and application suitability.

Copper wire does offer higher electrical conductivity, approximately 60% greater than aluminum, which means copper windings can be made smaller and more compact, carrying current more efficiently with less resistive loss. Copper also possesses superior thermal conductivity and mechanical strength, allowing better heat dissipation and greater resistance to mechanical stress, making it advantageous in high-load or harsh environments.

However, aluminum windings compensate for their lower conductivity by using a larger cross-sectional area, allowing aluminum transformers to achieve efficiencies comparable to copper transformers under normal operating conditions. Both copper and aluminum transformers typically meet the same efficiency standards today, often mandated by regulations, so in terms of operating efficiency, copper does not always perform noticeably better than aluminum when designs are optimized.

In terms of reliability and durability, copper generally provides a more robust solution due to its physical strength and resistance to deformation, leading to somewhat better long-term performance, especially in demanding conditions. Aluminum wiring, while historically more prone to installation challenges and oxidation issues, has improved significantly with modern techniques and can offer comparable operating life if properly installed and maintained.

From a cost perspective, copper transformers are more expensive upfront—often 8-14% pricier than aluminum alternatives but this cost may be justified by advantages in compactness, lower maintenance, and higher fault tolerance in certain applications.

In summary:

Copper wire windings perform better in terms of electrical and thermal properties and mechanical robustness, making them ideal for compact, high-stress, or long-life transformer applications. Aluminum performs nearly as well for many standard uses, especially when cost-effectiveness and weight are priorities. Modern advances have leveled efficiency and reliability differences significantly, so the best choice depends on specific operational requirements and budget.

Why is copper generally preferred over aluminum for toroidal transformer windings?

Building on the understanding of efficiency and performance differences between copper and aluminum windings, it is important to explore why copper is generally the preferred choice for toroidal transformer windings despite its higher cost. This preference comes from copper’s superior physical, electrical, and thermal characteristics that meet the demanding operational requirements of transformers.

Copper is generally preferred over aluminum for toroidal transformer windings primarily because of its superior electrical conductivity, mechanical strength, and reliability. Copper’s high conductivity allows transformers to be designed with tighter, more compact coils, reducing size while maintaining efficiency. This improves the overall performance of the transformer by minimizing energy losses during operation.

Copper’s mechanical properties further strengthen its advantage. It is more ductile and resistant to deformation, which makes winding easier and reduces the risk of damage during manufacturing or use. The physical strength of copper also helps the transformer withstand thermal expansion and electrical stress, contributing to greater longevity and reliability.

From a thermal standpoint, copper’s excellent heat dissipation ensures that transformers can operate at safer temperatures, enhancing durability and reducing the risk of overheating or failure.

While aluminum offers benefits such as lower weight and cost, its lower conductivity approximately 62 percent that of copper means it requires larger winding cross-sections for the same current, which can increase size and complexity. Aluminum is also more prone to installation issues and oxidation, potentially leading to reliability challenges if not carefully managed.

Can the winding material affect the efficiency and performance of a toroidal transformer?

Yes, the winding material absolutely affects the efficiency and performance of a toroidal transformer.

Here’s why:

Conductivity

Copper has about 60% higher electrical conductivity than aluminum. This means copper windings have lower electrical resistance, which reduces energy loss as heat and improves overall efficiency.

Size and Weight

Because aluminum has lower conductivity, a transformer with aluminum windings needs larger wire cross-sections to carry the same current as copper. This can make the transformer bulkier for the same power rating.

Heat Dissipation

Copper dissipates heat more effectively than aluminum. Poor heat dissipation in aluminum windings can lead to higher operating temperatures, potentially shortening lifespan.

Copper disDurability

Copper is mechanically stronger and less prone to fatigue than aluminum, making it more reliable in applications where vibration or thermal cycling occurs.

So, copper-wound transformers are generally more efficient and durable, but aluminum-wound ones are lighter and more affordable for cost-sensitive projects.

What is copper-clad aluminum wire, and how can it be distinguished from pure copper or aluminum?

Have you ever wondered what copper-clad aluminum wire is and how it differs from pure copper or aluminum wires? Knowing this can help you better identify wiring materials used in transformers and other electrical devices.

Let’s explore what copper-clad aluminum wire is and how to distinguish it from pure copper or aluminum.

Copper-clad aluminum (CCA) wire consists of an aluminum core coated with a thin layer of copper. This design aims to combine copper’s conductivity and aluminum’s lightweight and cost advantages. Here are the key points to understand and identify CCA wire:

• Composition: Unlike pure copper wire, which is solid copper, or pure aluminum wire, which is entirely aluminum, CCA wire uses aluminum inside with a copper outer layer.
• Appearance: At a glance, CCA looks similar to copper wire because of its copper coating, but if the wire is cut or worn, the core’s silverish aluminum color becomes visible.
• Weight: CCA wire is lighter than pure copper wire but heavier than pure aluminum for the same gauge, due to the copper cladding.
• Electrical Properties: While copper has superior conductivity, CCA has lower conductivity than pure copper but better than aluminum alone, making it a cost-effective compromise.
• Identification Methods: To distinguish CCA from pure copper or aluminum, inspect a clean cut end—pure copper is reddish, pure aluminum silvery-white, and CCA shows a copper-colored shell with a silvery core.
• Applications and Limitations: CCA is often used where weight and cost are concerns but may affect transformer performance and durability compared to pure copper.

When to Choose Copper or Aluminum Transformers?

Selecting the appropriate transformer winding material is crucial in custom transformer design, especially when efficiency and safety are key priorities. Both copper and aluminum windings have specific advantages that align with different application requirements. Below is a practical guide for choosing the right material for your transformer projects.

When to Choose Copper Transformers

Copper-wound transformers are typically preferred in scenarios where:

1. Highest Efficiency Is Needed: Copper’s superior electrical conductivity reduces resistive losses, improving efficiency and minimizing heat buildup, which is especially important in sensitive, high-performance, or energy-critical designs.
2. Space Constraints Exist: The higher conductivity of copper allows for smaller, more compact coils. This enables compact transformer designs, which are optimal in tightly packed devices or enclosures.
3. Reliability and Durability Are Priorities: Copper provides greater mechanical strength and resistance to deformation and fatigue, making it ideal for transformers exposed to vibration, frequent cycling, or potential mechanical stress.
4. Thermal Management Is Critical: Excellent thermal conductivity enables effective heat dissipation, supporting stable operation and longer transformer life in higher-load or demanding applications.
5. Harsh or Corrosive Environments: Copper’s resistance to oxidation and corrosion suits marine, outdoor, or chemically challenging settings.

When to Choose Aluminum Transformers

Aluminum-wound transformers can be the better option in these cases:

1. Budget and Cost Efficiency Matter: Aluminum costs less and offers stable pricing, significantly reducing initial investment for large-scale, cost-sensitive, or high-volume projects.
2. Weight Is a Major Concern: With its lower density, aluminum is preferred for applications where minimizing overall system weight is essential, such as mobile, transportation, or pole-mounted installations.
3. Weight Is a Major Concern: With its lower density, aluminum is preferred for applications where minimizing overall system weight is essential, such as mobile, transportation, or pole-mounted installations.
4. Size Is Less Restrictive: The need for a larger cross-sectional area may result in a bulkier unit, which is fine in applications where enclosure space is not limited.
5. Modern Connection and Installation Methods Are in Use: Current techniques have greatly reduced historic concerns with aluminum oxidation and reliability, making aluminum a practical choice where up-to-date engineering standards are followed.

Quick Reference Guide：

Additional Considerations for Custom Design

Given your focus on efficiency and safety in custom transformer design, copper is often the material of choice when specifications require high reliability, minimal losses, or when environmental conditions demand extra durability. Aluminum becomes highly attractive in cost-driven projects, where advances in manufacturing and engineering design techniques can ensure comparable reliability for many standard applications.

Carefully matching the winding material to the application’s practical demands will ensure optimal performance, safety, and cost-effectiveness in your transformer designs.

Why do manufacturers use aluminum instead of copper in some transformers?

With the rising demand for cost-effective and efficient power solutions, manufacturers often face a choice between copper and aluminum for transformer windings. While copper has traditionally been favored for its superior electrical properties, aluminum has gained significant ground in recent years due to various practical advantages. Understanding why some manufacturers opt for aluminum instead of copper helps clarify the trade-offs involved in transformer production.

Manufacturers use aluminum instead of copper in some transformers mainly because aluminum is less expensive and has more stable pricing over time, which lowers the initial cost of the transformer significantly. Aluminum is also lighter than copper, making transformers easier to transport and install, especially in applications where weight is a critical factor.

Although aluminum has lower electrical conductivity about 60 to 62 percent of copper’s manufacturers compensate by designing windings with a larger cross-sectional area. This ensures aluminum-wound transformers have similar efficiency and comparable heat loss to copper transformers. Modern design and manufacturing improvements have also addressed many of the historical drawbacks of aluminum, such as connection difficulties and oxidation, allowing aluminum transformers to have operating lives and reliability comparable to copper units when properly installed and maintained.

Additionally, aluminum windings produce a lower current density due to their size, which can result in less heat loss per unit of conductor surface area, potentially contributing to energy savings in some designs. This further supports the viability of aluminum in a wide range of distribution transformer applications.

Conclusion:

Now you know the key differences between copper and aluminum windings and how to identify them in your toroidal transformer. From checking the color and weight to reviewing manufacturer labels and performing simple tests, these tips make it easier to figure out what material you are dealing with.

Understanding whether your transformer uses copper or aluminum is not just about curiosity. It helps you make smarter decisions when it comes to maintenance, replacement, or purchasing a new one. Copper offers higher conductivity and durability, while aluminum is lighter and often more cost-effective.

Next time you are working with a toroidal transformer, take a moment to check its winding material. It could save you time, money, and potential performance issues down the road.
